CAN Signal Inspection
- Ignition switch "OFF"

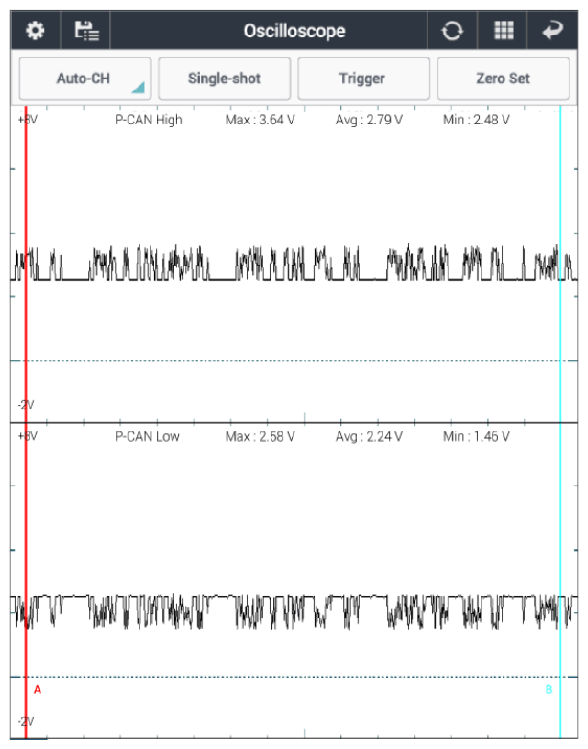

- Connect VMI to KDS and launch the oscilloscope (2 Channel):
Channel A (+): Pin No. 13 (P-CAN High) terminal (IGPM connector)
Channel A (-): Ground
Channel B (+): Pin No. 14 (P-CAN Low) terminal (IGPM connector)
Channel B (-): Ground
- Ignition switch "ON"
Specification: C-CAN High voltage - Approx. 2.8V/C-CAN Low voltage - Approx. 2.2V (Average)
- Is the measured value within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
NO
- Repair open or short in P-CAN communication line and then, go to "VERIFICATION OF REPAIR " procedure.
- If problem keep occurs, go to "COMPONENT INSPECTION " procedure.
