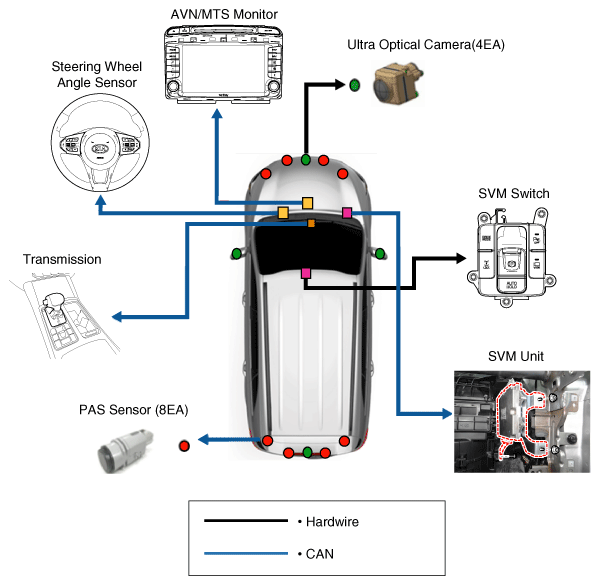

Components And Components Location: Components: Notes

Courtesy of KIA MOTORS AMERICA, INC.

Information

1. SVM unit basically uses C-CAN signal only to communicate about the vehicle's condition.
   • Steering wheel angle sensor: C-CAN
   • Vehicle speed sensor: C-CAN
2. Other unit's B-CAN, P-CAN, and MM-CAN signals are changed to C-CAN signal and sent to SVM unit by CGW (Central Gate Way).

• AVN monitor: MM-CAN
• Transmission: P-CAN (TCM unit)
• SPAS sensor: C-CAN (SVM unit)
• PAS sensor: B-CAN (BCM)
