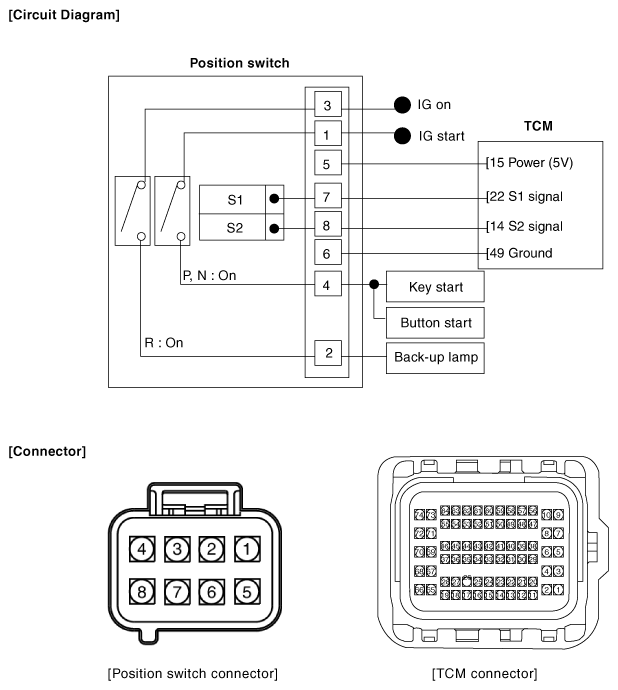

Home › Kia › 2019 › Sorento EX, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 3.3L › Position Switch › Schematic Diagrams › Circuit Diagram
