Repair Procedures: Inspection

Inspection of the Smart Tailgate using KDS

1. Failed area can be promptly detected by inspecting failure code, monitoring input value and forcefully operating actuator and self-diagnosis using the KDS analyzing device.
2. Select the vehicle and menu to analyze the Smart Tailgate module.
3. Select the "STM" to check the DTC of the power trunk module.

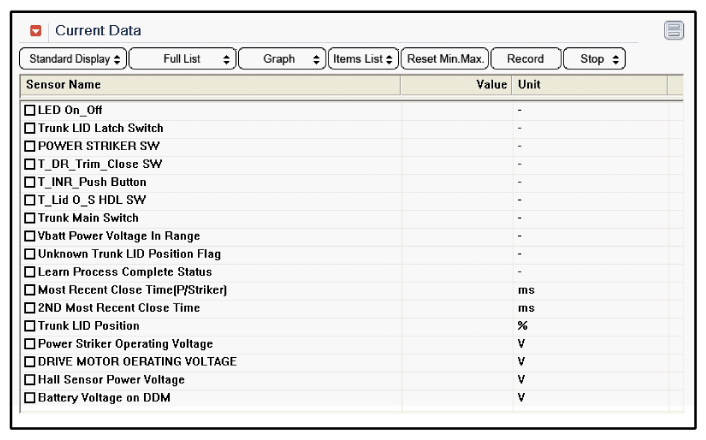

4. Select the "Service Data" to see the current status in accordance with the input/output value. Offer status of the each switch and sensor.

Courtesy of KIA MOTORS AMERICA, INC.
