FM/AM Broadcasting: Notes

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Features/Misdiagnose cases

Inspection	Description
(1) System features	Last played channel will continue to play after IGN ON (Last memory) BSM (Best Station Memory) mode picks strongest radio reception

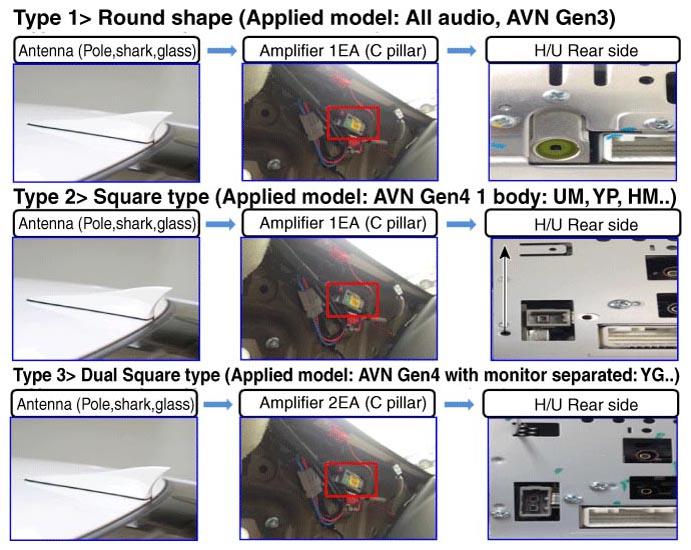

(2) Vehicle Parts configuration (Radio antenna type and configuration)	Courtesy of KIA MOTORS AMERICA, INC.
(3) Misdiagnose cases	Check battery drain and B/U voltage shutdown → Last played channel may change Poor reception area → Noise due to poor reception area (Not H/U defect) Vehicle modification noise → Remove any modification before testing
