System Features

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

*Vehicle parts

  1. When ACC On, last radio channel at ACC Off should be played (Last memory)
  2. When radio channel is automatically searched (Seek/Stop), radio broadcasting should be well received

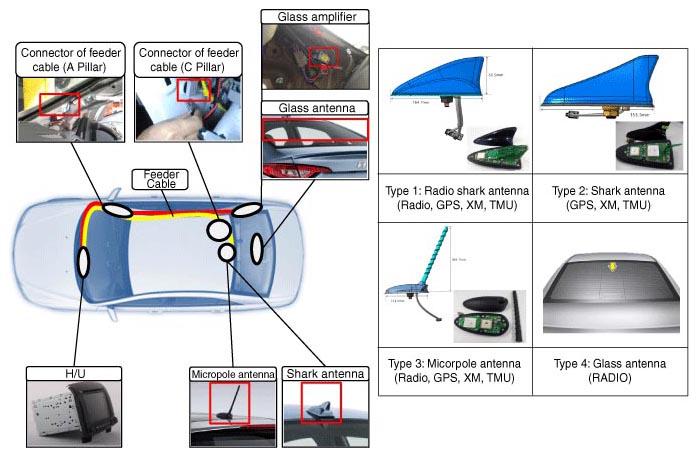

Fig 1: AVN System Features Components Location
G12883490Courtesy of KIA MOTORS AMERICA, INC.
  1. 2. Sirius XM Reception
Inspection Description
(1) Duplicate issue
  1. Audio output on other mode (CD, Media)
    1. If same issue occurs in different mode, check sound (Refer to 'Sound trouble shooting guide')
  2. Radio continues to play last played channel (frequency) before turning IGN off
    1. If last played channel is changed, check battery drain B/U voltage shutdown

      → Last played channel may change

  3. Radio channel (Frequency) issue when using Seek/Stop button?
    1. Part defect if Seek/Stop button fails to receive signal in a good reception environment (Antenna, H/U, feeder cable, etc.)
(2) External/Environmental Issue
  • Poor reception area
  • Black box
  • Cable connection
  1. Move to better reception environment (Poor reception area)
    1. If this issue continues, proceed with step 2 below

      Information

      • Bad reception by circumstances
        Fig 2: Checking Radio Frequency Area
        G12883491Courtesy of KIA MOTORS AMERICA, INC.
  2. Black box (vehicle modification noise)
    1. Remove power on black box (Especially rear) and re-test
  3. Engineering mode > Care > Vehicle I/F Test/Radio (Confirm reception using different vehicles)
    1. Check reception on good reception environment: Normal if above 30db
      Fig 3: Screen Display - Engineering Mode
      G12883492Courtesy of KIA MOTORS AMERICA, INC.
(2) External/Environmental Issue
  • Poor reception area
  • Black box
  • Cable connection
 4. Check antenna cable and connection if the value for step 3 is below 30db
  1. Check antenna location and type

    Information

    • Examples of defect of antenna and cable

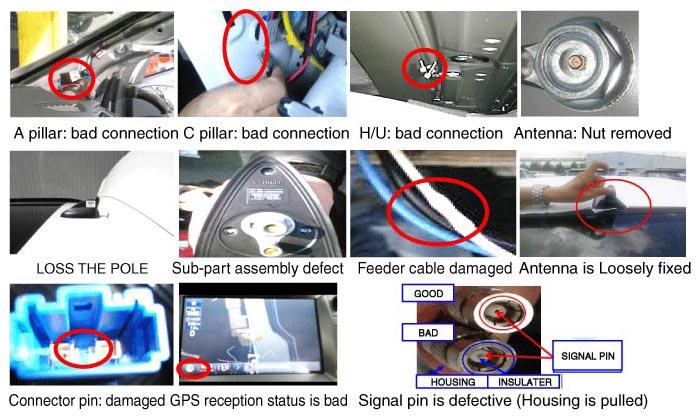

      Fig 4: Checking Antenna Cable And Connection
      G12883493Courtesy of KIA MOTORS AMERICA, INC.
(3) Defect caused by Ext. parts
  1. If antenna connection is good, replace antenna and feeder cable and re-test (Use certified antenna)
(4) Check H/U defect
  1. If this issue continues, replace H/U and re-test
