Bluetooth/Voice Recognition/Mic

→ In this case, user can't hear other end

→Check cable, connector, and amp (Issue not related to streaming)

ACC OFF, H/U Power off, and check phone's play setting

1. Phone application (No sound, Noise, Title display)

   * Example: Application like I-MEPS will provide low quality streaming service. User may think it is H/U defect

2. Noise from media source

   * If downloaded using P2P source

If phone application and media source is good, replace H/U and re-test

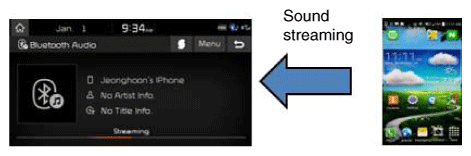

1. Press "Play" using connected phone.

   (1) If Phone display is locked or phone did not activate before connecting to Bluetooth, user must press "Play" button manually.(2) Difference between iPhone and Android.

   →For some Android, auto-play is available if streaming is set once on H/U screen.

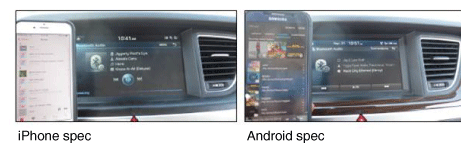

   Fig 2: Screen Display - Difference Between iPhone And Android

   Courtesy of KIA MOTORS AMERICA, INC.

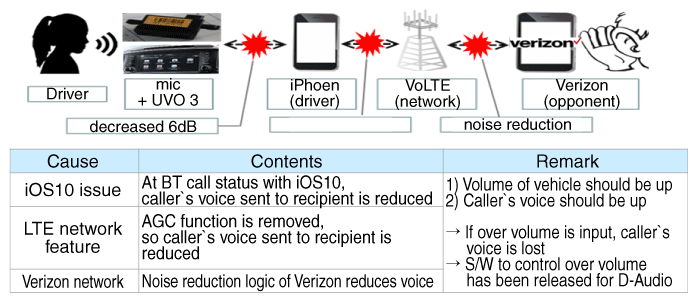

1. Increase volume, uncheck mute setting
2. If issue continues, check for any custom modification

   (1) If modification is found, notify that it is not covered by warranty and test with genuine part

3. If issue continues, check mic wiring connection status
4. Replace mic and re-test
5. Replace H/U and re-test

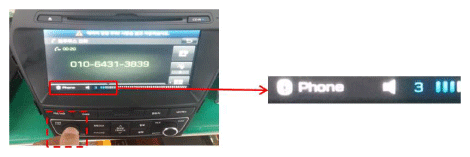

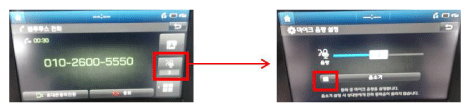

   Fig 3: Checking Mic Volume And Mute Settings

   Courtesy of KIA MOTORS AMERICA, INC.

1. If volume is set low, sound output is low or mute

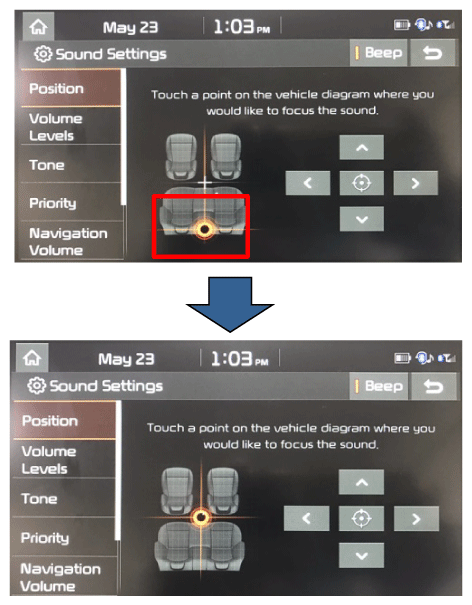

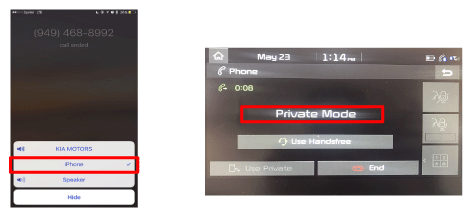

1. Call sound will be heard only from rear
2. Set to default and re-test

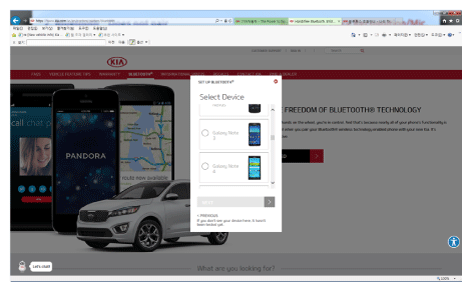

1. Check compatibility list: Refer to 2. Pairing
2. If phone is not listed, it is compatibility issue ↔ If listed, test using different phone

1. Phone must be compatible with H/U
2. If issue only occurs on certain phone ↔ If issue continues on different phone, replace H/U and retest

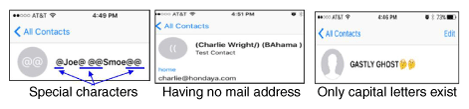

1. Remove any special characters or upper case only names and re-test
   Fig 4: Screen Display - Contact Information

   Courtesy of KIA MOTORS AMERICA, INC.

1. Contact information saved only in Facebook, Tweeter

   (Information not saved on local memory or SD card)

   Phone displays contact information but will not download contact

2. Move contact information from 3rd party Apps and Symbols to phone or SD card and re-test (Synchronization)
3. Send contact information using PC Sync, Cloud Sync, email Sync

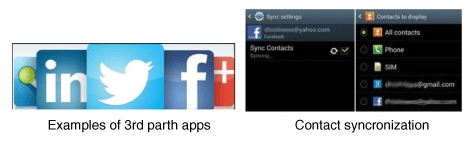

   Fig 5: Screen Display - 3rd Party Apps/Symbols And Contact Synchronization

   Courtesy of KIA MOTORS AMERICA, INC.

1. Remove any special characters or upper case only names and re-test
   Fig 6: Screen Display - Contact Information

   Courtesy of KIA MOTORS AMERICA, INC.

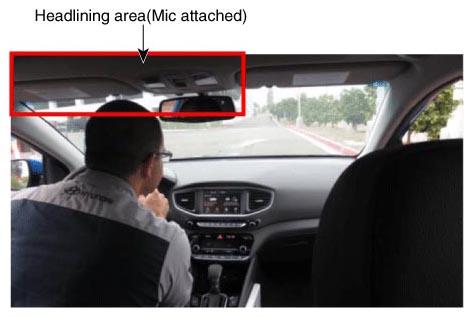

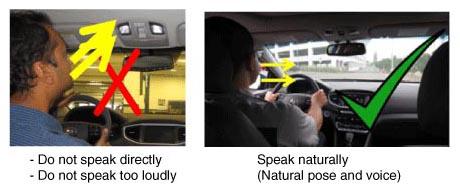

1. Do not speak directly to the headlining area

   (1) Mic is a sensitive part and optimized to speak at natural pose. If spoken directly at the mic can cause recognition failure

2. Do not speak too loudly

   (1) If spoken too loudly at the mic can trigger noise reduction logic and it may think user's voice as noise and limit volume

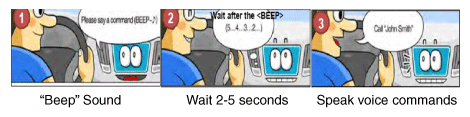

Fig 7: Testing Voice Recognition In Vehicle Settings

Courtesy of KIA MOTORS AMERICA, INC.

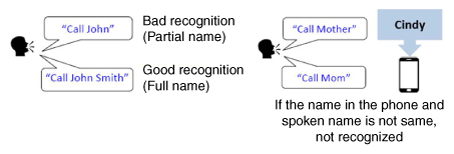

1. To increase recognition success rate, consider using full name

   (1) if John Smith is registered on the phone, it is better to say "Call John Smith" than saying "Call John" only

2. Use the same name registered on the phone

   (1) H/U will not recognize different name stored on the phone. For example, saving mother as "Cindy" on the phone and use voice command mom or mother to call

   Fig 8: Screen Display - Voice Recognition Test

   Courtesy of KIA MOTORS AMERICA, INC.

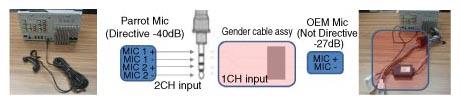

1. Check if customer is using DIO H/U
2. Connect provide mic from DIO H/U and re-test
3. If issue is resolved, it is compatibility issue with OEM mic. Connect mic provided from DIO H/U
4. If issue continues replace genuine mic and re-test
5. If issue continues replace H/U and re-test

• Do not replace mic if voice recognition is working
