Components And Components Location
›
Components Location
Components Location

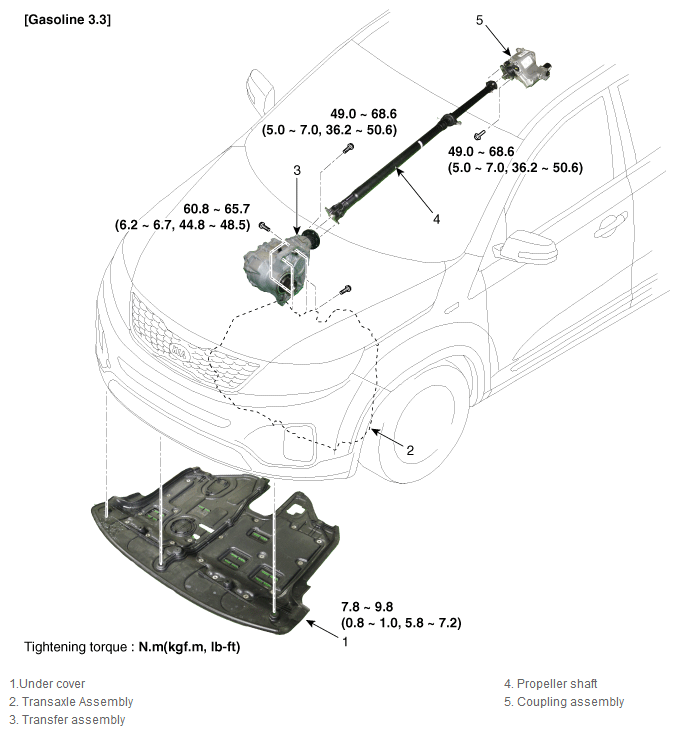

Fig 1: Front Wheel Transfer Assembly Components With Torque Specification (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

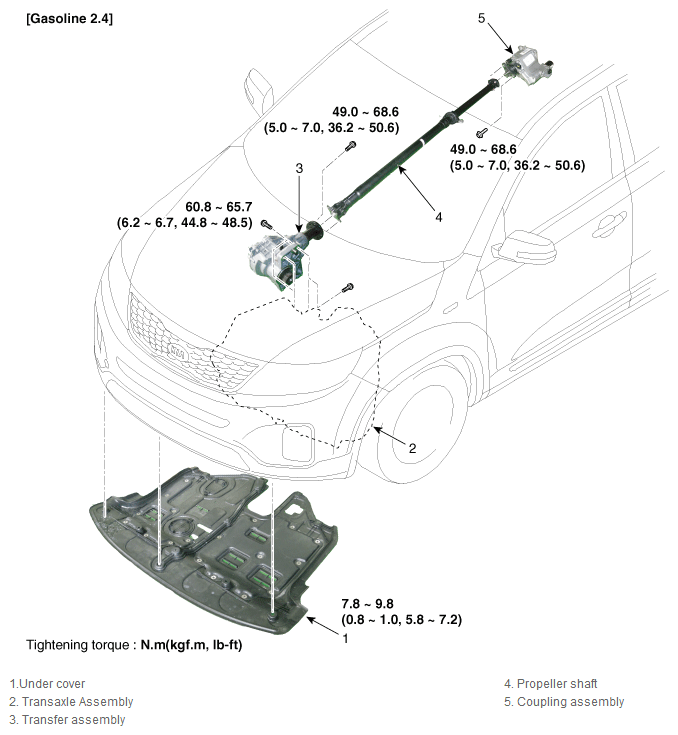

Fig 2: Front Wheel Transfer Assembly Components With Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
