Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- If clutch actuator needs replacement, measure the pull rod length of the old clutch actuator to determine if clutch wear compensation reset is needed.
  (Refer to Clutch Actuator Assembly - ADJUSTMENT )
- If needed, perform clutch actuator clutch wear compensation reset.
  (Refer to Clutch Actuator Assembly - ADJUSTMENT )
- Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.

  Fig 1: Locating Dowel Pins
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform the clutch touch point learning procedure using the KDS/GDS after replacing the clutch actuator assembly.

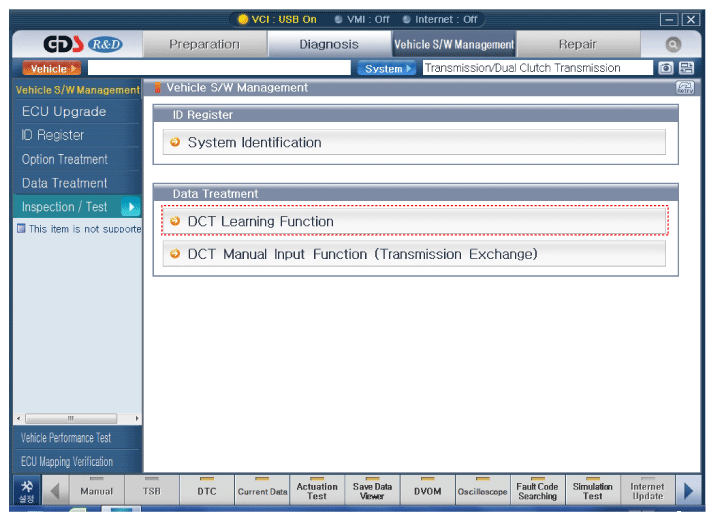

  Fig 2: Scantool Display - Vehicle S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.
