Engine Control System - 2.0L
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

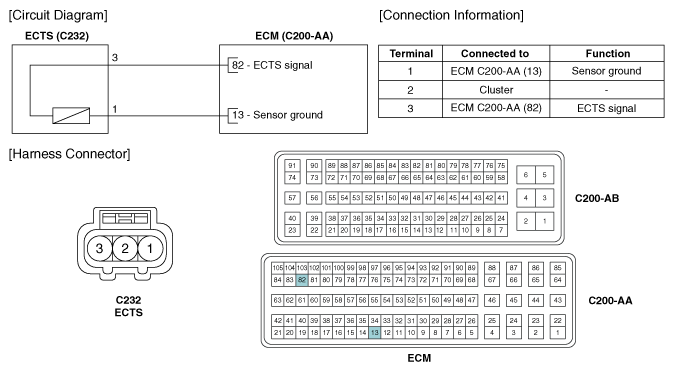

Fig 1: Engine Coolant Temperature Sensor Circuit (M/T) And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

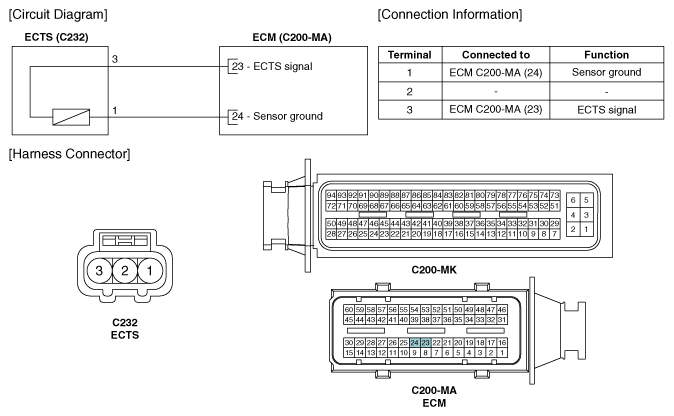

Fig 2: Engine Coolant Temperature Sensor Circuit (A/T) And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
