Repair Procedures: Replacement
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
- Remove the crash pad lower panel. (Refer to Body - "CRASH PAD LOWER PANEL ")

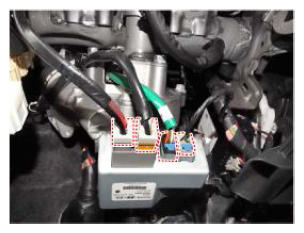

- Disconnect MDPS ECU connector.

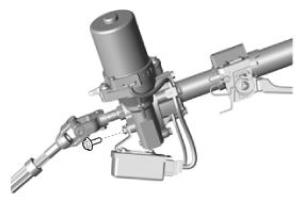

- Loosen the MDPS ECU bracket bolts and then remove the MDPS ECU.
