Repair Procedures: Inspection: Reassembly
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- Wrap tape around the driveshaft spline (TJ) to prevent damage to the boot.

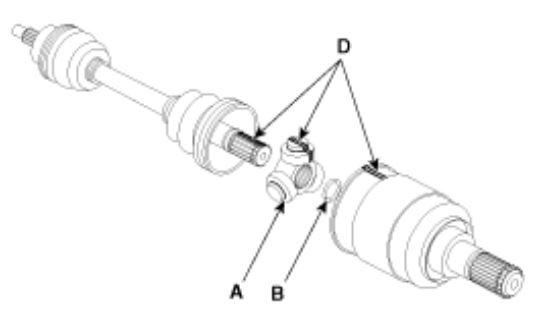

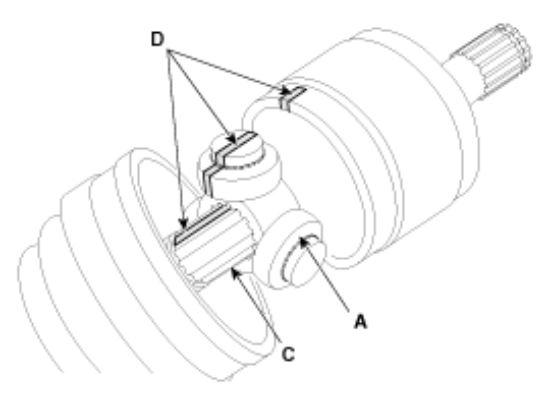

- Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).
- Add specified grease to the joint boot as much as it was wiped away at inspection.

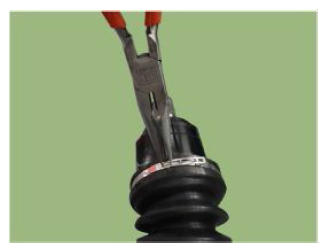

- Install the both boot band.

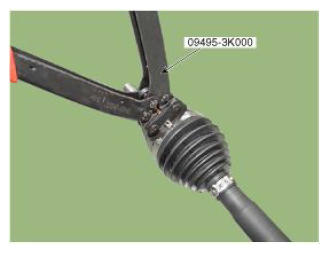

- Using the SST (09495-3K000), secure the TJ boot bands.NOTE:
- Do not reuse the boot band.
- Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Check the front alignment.
(Refer to Suspension System - "FRONT WHEEL ALIGNMENT ")
