[Automatic Console]

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

To remove the gear knob & gear boots (A) pull both of it up.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Remove the console front tray mat (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console front bezel (A) by pulling it rearward.

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the parking brake cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear console tray mat (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the console rear mounting hole cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

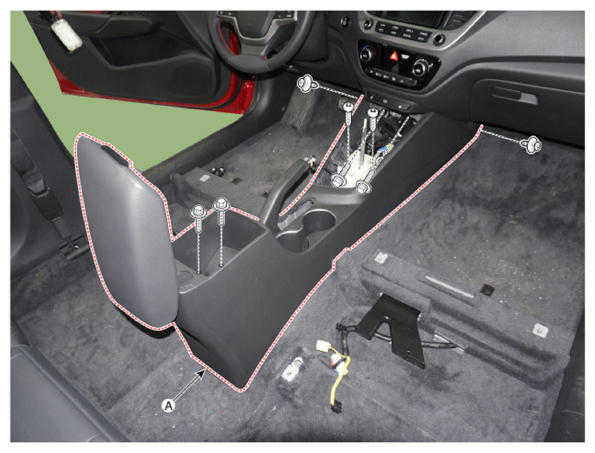

After loosening the mounting screws and bolts, remove the console complete assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin - type retainers).
