Repair Procedures: Removal

1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2. Put a flat tool (Ø4mm) into a guide hole located in the bottom of steering wheel and press a spring.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • When put a tool into a hole, make sure not to damage an airbag cushion by a tool.
3. Turn a steering wheel anti-clockwise, so make a guide hole (A) displayed on the right side.

   Put a tool into a hole (A) and bend back a fixed DAB spring.

   Make sure to pull DAB cover when bend back the spring.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.
4. Turn a steering wheel clockwise. Put a tool into a hole (A) and bend back a fixed DAB spring. Make sure to pull DAB cover.

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • Be careful not to put a tool into a wrong hole.

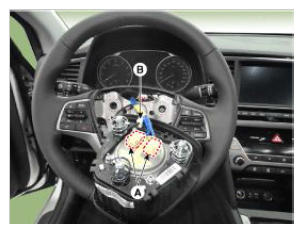

5. Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

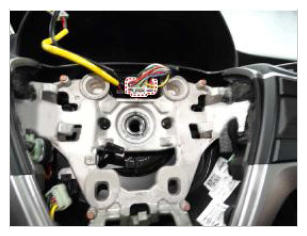

6. Disconnect the clock spring connector.

   Courtesy of HYUNDAI MOTOR AMERICA

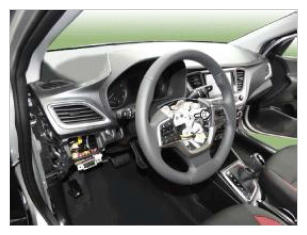

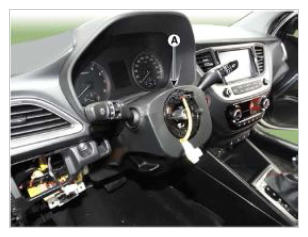

7. Remove the steering wheel by loosening the lock bolt (A).

   Courtesy of HYUNDAI MOTOR AMERICA

8. Remove the steering column upper shroud (A).

   Courtesy of HYUNDAI MOTOR AMERICA

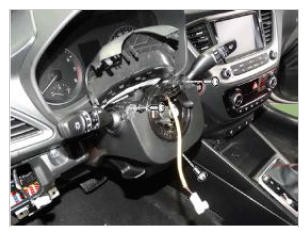

9. Loosen the screw and then remove the lower shroud.

   Courtesy of HYUNDAI MOTOR AMERICA

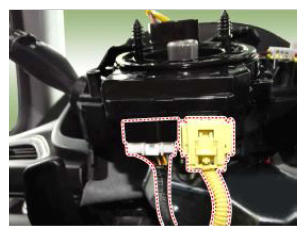

10. Disconnect the connector.

    Courtesy of HYUNDAI MOTOR AMERICA

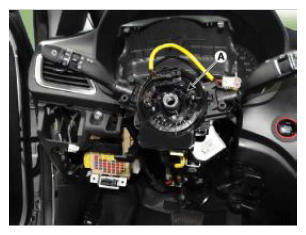

11. Remove the clock spring (A).

    Courtesy of HYUNDAI MOTOR AMERICA

12. Disconnect the multifunction switch connector.

    Courtesy of HYUNDAI MOTOR AMERICA

    Courtesy of HYUNDAI MOTOR AMERICA

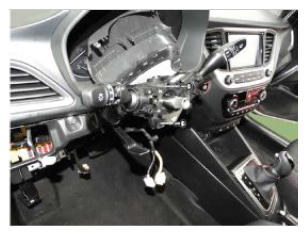

13. Loosen the screw and then remove the multifunction switch.

    Courtesy of HYUNDAI MOTOR AMERICA

14. Remove the crash pad lower panel. (Refer to Body - "CRASH PAD ")

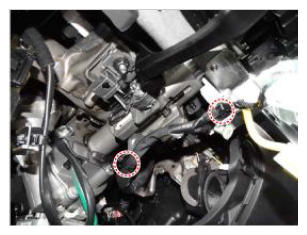

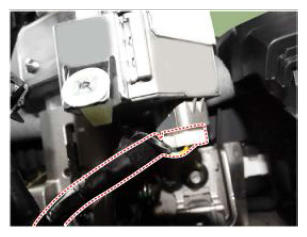

15. Remove the fixed clip and then remove the wiring from the steering column.

    Courtesy of HYUNDAI MOTOR AMERICA

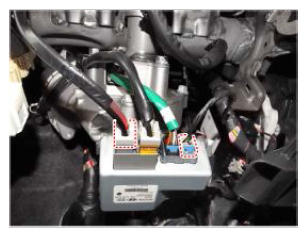

16. Disconnect MDPS ECU connector.

    Courtesy of HYUNDAI MOTOR AMERICA

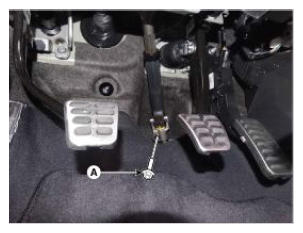

17. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening Torque:

    32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

    NOTE:

    • Do not reuse the bolt.
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

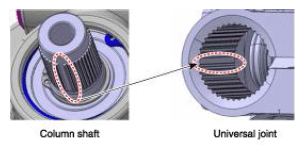

    • When assembling, insert the shark pin into the universal joint york slot as the image below.

    Courtesy of HYUNDAI MOTOR AMERICA

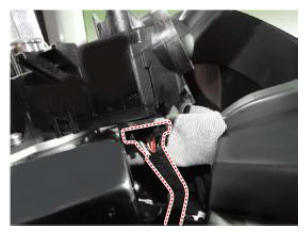

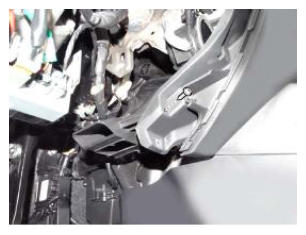

18. Remove the shower duct.

    Courtesy of HYUNDAI MOTOR AMERICA

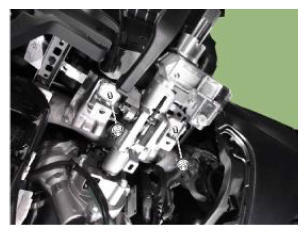

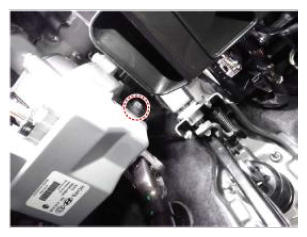

19. Remove the steering column & EPS unit assembly by loosening the mounting bolt and nuts.

Tightening Torque

Nut: 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

Bolt: 44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

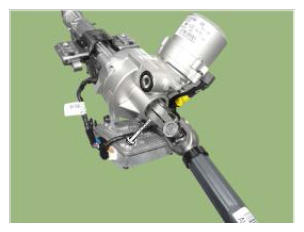

1. Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

   Tightening Torque:

   49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Do not reuse the universal joint bolt.
   • When assembling, match the gear teeth as the below image.

   Courtesy of HYUNDAI MOTOR AMERICA

2. To reassembly, reverse the disassembly procedure.
3. Reassembly is the reverse of the disassembly.
