Projected Dimensions
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

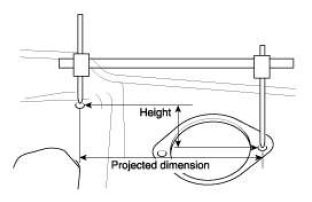

- The dimensions are measured by projecting the measurement points on the vehicle surface onto the reference dimensions.
- If the length of the tracking gauge proves is adjustable, measure the dimensions by lengthening one of the two probes to the height difference between the two measuring surfaces.
 Courtesy of HYUNDAI MOTOR AMERICA
|
