Repair Procedures: Removal

Turn the ignition switch OFF.

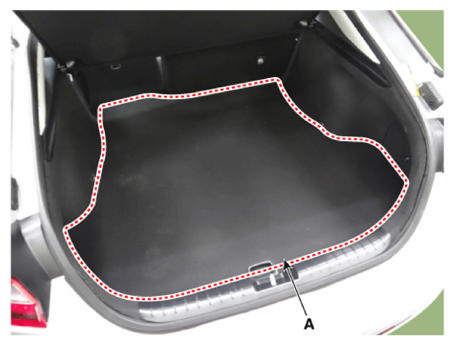

Remove the luggage covering (A).

Courtesy of KIA MOTORS AMERICA, INC.

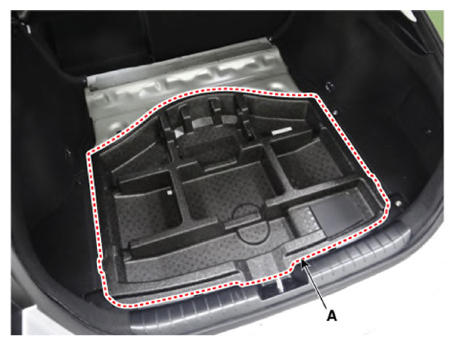

Remove the luggage center tray (A).

Courtesy of KIA MOTORS AMERICA, INC.

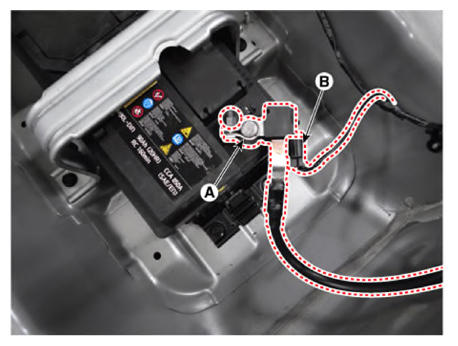

Disconnect the battery negative (-) terminal (A).
Disconnect the battery sensor connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

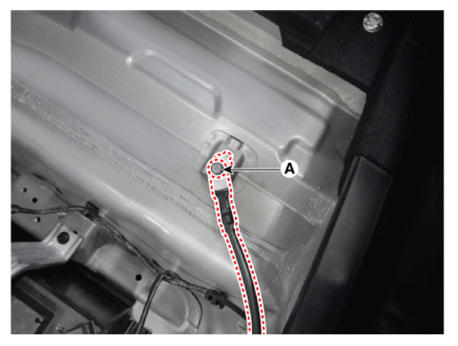

Remove the battery sensor by loosening the mounting bolts (A).
Battery sensor cable mounting bolt:

27.0 - 33.0 N.m (2.7 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
