Heated Oxygen Sensor (H02S)
›
Repair Procedures
›
Removal
›
[Bank 1/Sensor 1]
[Bank 1/Sensor 1]
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

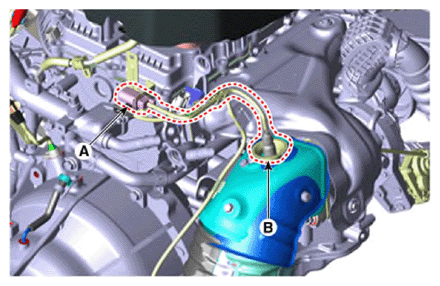

Disconnect the connector (A), and then remove the sensor (B).
Courtesy of KIA MOTORS AMERICA, INC.
