Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE  ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

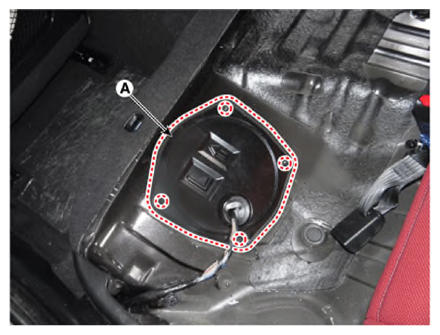

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G12795179Courtesy of KIA MOTORS AMERICA, INC.

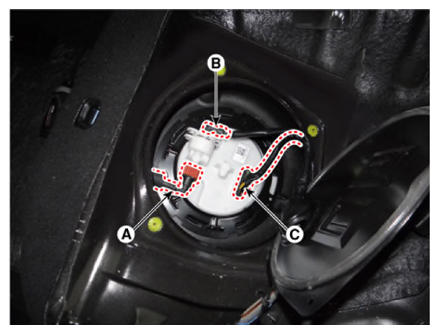

  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).
    G12795180Courtesy of KIA MOTORS AMERICA, INC.

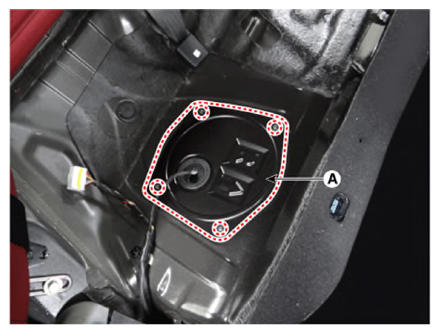

  8. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G12795181Courtesy of KIA MOTORS AMERICA, INC.

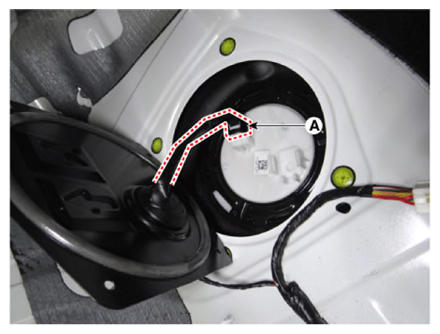

  9. Disconnect the sub fuel sender connector (A).
    G12795182Courtesy of KIA MOTORS AMERICA, INC.
  10. Lift the vehicle.
  11. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - " MUFFLER  ")

  12. Remove the propeller shaft assembly.

    (Refer to Driveshaft and Axle - " PROPELLER SHAFT  ")

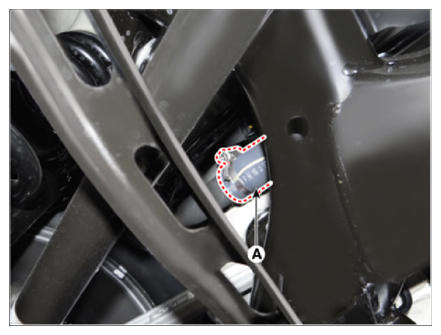

  13. Disconnect the fuel filler hose (A).
    G12795183Courtesy of KIA MOTORS AMERICA, INC.

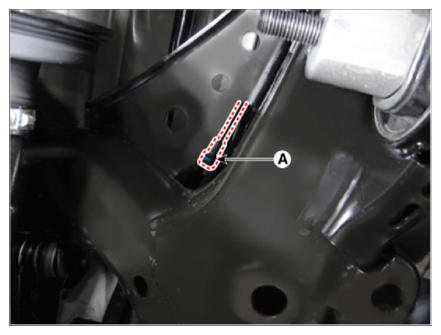

  14. Disconnect the ventilation (A).
    G12795184Courtesy of KIA MOTORS AMERICA, INC.

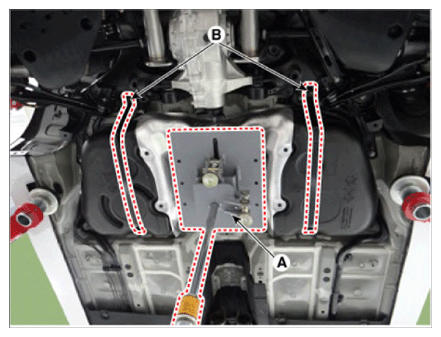

  15. Support the fuel tank with jack (A).
  16. Remove the fuel tank installation nut (B) and then loosen the fuel tank.
    G12795185Courtesy of KIA MOTORS AMERICA, INC.

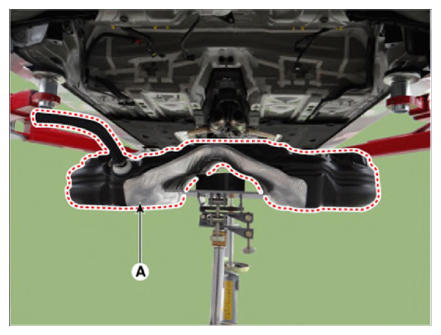

  17. Remove the fuel tank (A).
G12795186Courtesy of KIA MOTORS AMERICA, INC.
