Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

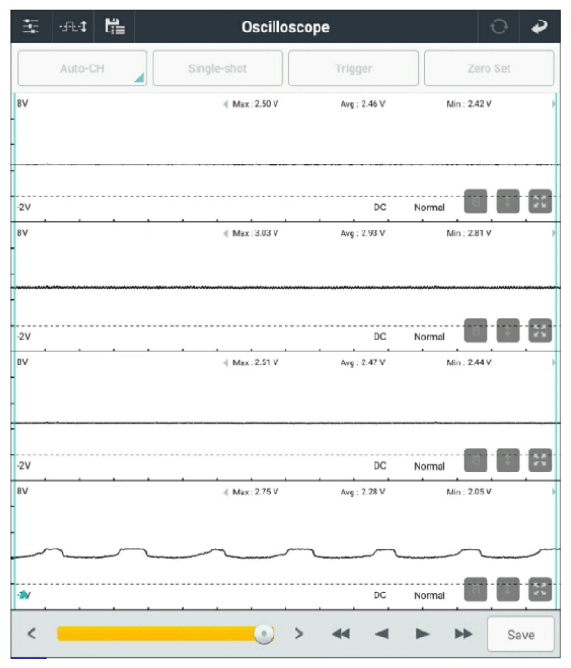

Ignition "ON", Engine "ON"	HO2S#1 (B1/S1) connector	3 (Virtual ground)	HO2S#1 (B1/S1) connector	1 (Nernst Voltage)	Figure below
Ignition "ON", Engine "ON"	HO2S#1 (B1/S1) connector	6 (Pumping Current)	HO2S#1 (B1/S1) connector	4 (Trim Resister)	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the HO2S (B1/S1) and go to "VERIFICATION OF REPAIR " procedure.
