Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the fuel filler cap after opening the fuel filler door.
  3. Lift the vehicle.
  4. Remove the rear-left wheel & tire and wheel house cover.

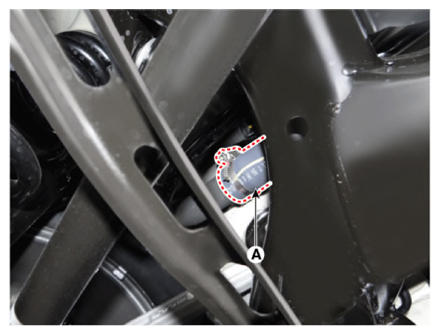

  5. Disconnect the fuel filler hose (A).
    G12795226Courtesy of KIA MOTORS AMERICA, INC.

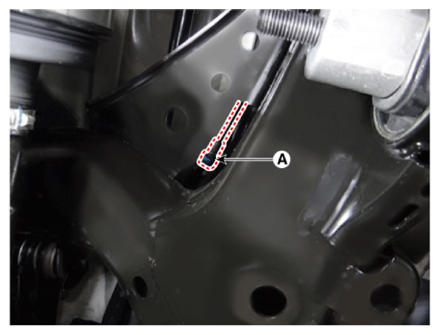

  6. Disconnect the vapor tube (A).
    G12795227Courtesy of KIA MOTORS AMERICA, INC.

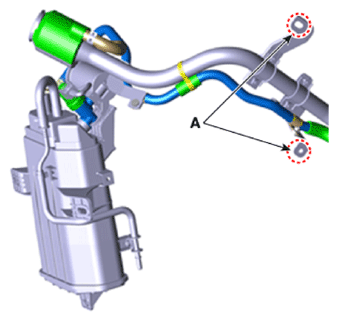

  7. Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).
G12795228Courtesy of KIA MOTORS AMERICA, INC.
