Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Wrap tape around the driveshaft spline (TJ) to prevent damage to the boot.

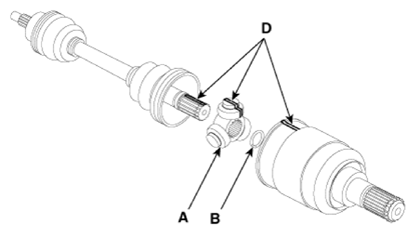

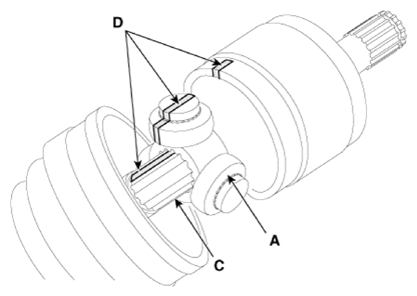

  2. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).
    G12789927Courtesy of KIA MOTORS AMERICA, INC.
    G12789928Courtesy of KIA MOTORS AMERICA, INC.
  3. Add specified grease to the joint boot as much as it was wiped away at inspection.
  4. Install the both boot band.
  5. To control the air in the TJ boot, keep the specified distance between the boot bands when they are tightened.
    Engine Distance (L) mm (in.)
    LH side RH side
    2.0 T-GDI THETA II 479.9 (18.8937) 463.3 (18.2402)
    3.3 T-GDI LAMBDA II 479.9 (18.8937) 463.4 (18.2441)
    G12789929Courtesy of KIA MOTORS AMERICA, INC.

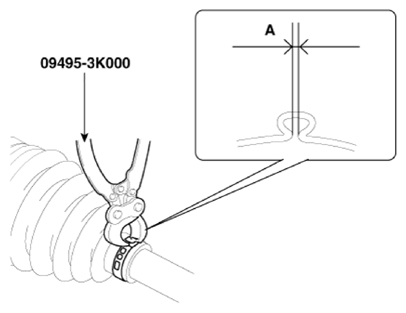

  6. Using the SST(09495-3K000), secure the TJ boot bands.

    Clearance (A):  2.0 mm (0.0787 in.) or less

    G12789930Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the Front Driveshaft.

    (Refer to Driveshaft Assembly - " FRONT DRIVESHAFT  ")

  8. Check the front alignment.

    (Refer to Suspension System - " ALIGNMENT  ")
