[Bank 1]

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - " ENGINE COVER ")
Disconnect the camshaft position sensor connector (A).
Remove the camshaft position sensor after loosening the mounting bolt (B).
Camshaft position sensor installation bolt :

6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb.ft)

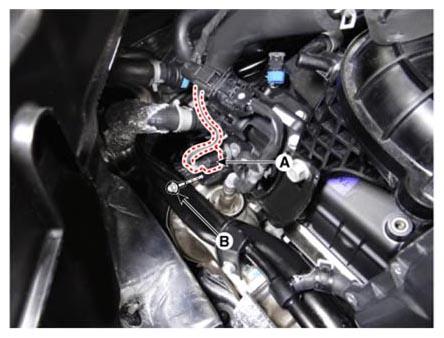

[Bank 1/Intake]

Courtesy of KIA MOTORS AMERICA, INC.

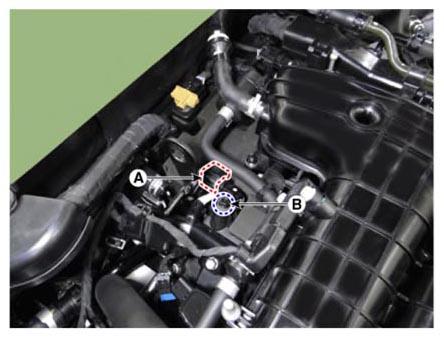

[Bank 1/Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
