Repair Procedures: Removal

  1. Turn the ignition switch OFF.

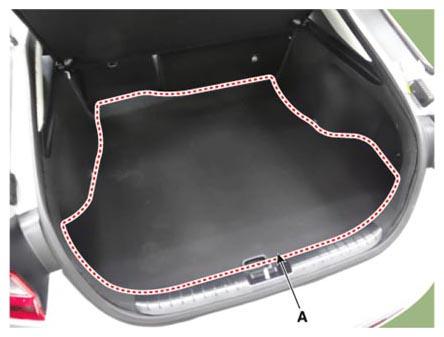

  2. Remove the luggage covering (A).
    G12803597Courtesy of KIA MOTORS AMERICA, INC.

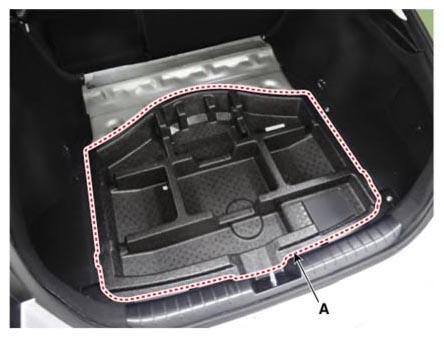

  3. Remove the luggage center tray (A).
    G12803598Courtesy of KIA MOTORS AMERICA, INC.

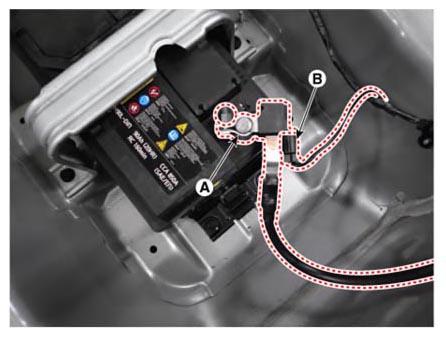

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G12803599Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G12803600Courtesy of KIA MOTORS AMERICA, INC.
