Circuit Inspection

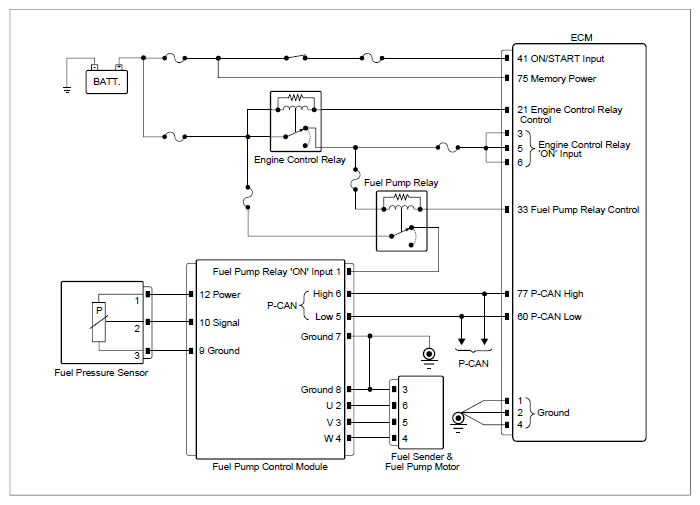

G12781474

Courtesy of KIA MOTORS AMERICA, INC.

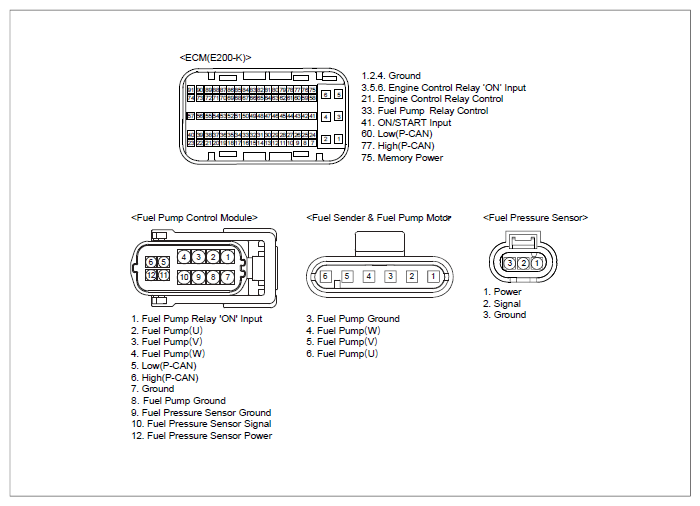

G12781475

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	Fuel pump control module connector	1 (Power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Fuel pump control module connector	7/8 (Ground)	Chassis ground	-	below 1Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Fuel Pressure Sensor connector	1 (Power)	Fuel pump control module connector	12 (Power)	below 1Ω
	Fuel Pressure Sensor connector	2 (Signal)	Fuel pump control module connector	10 (Signal)	below 1Ω
	Fuel Pressure Sensor connector	3 (Ground)	Fuel pump control module connector	9 (Ground)	below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
