Engine And Transmission Assembly 3.3L
›
Engine Mounting
›
Components And Components Location
›
Components
Components And Components Location: Components

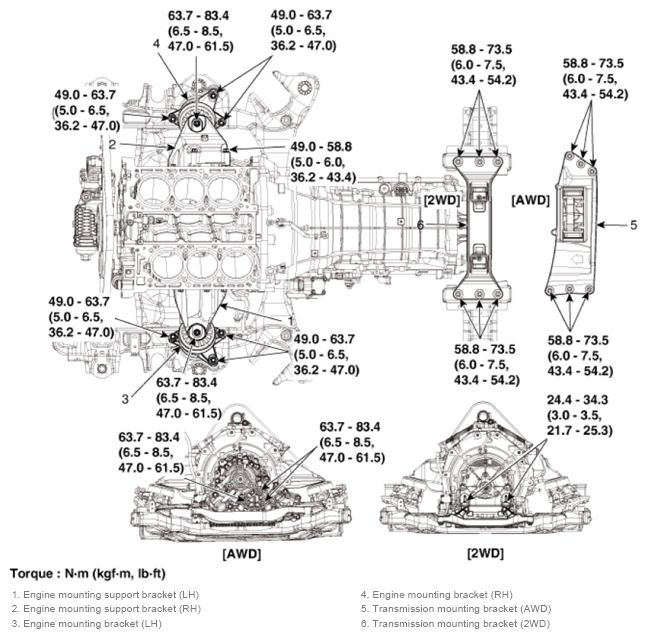

Fig 1: Engine Mounting Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
