Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.

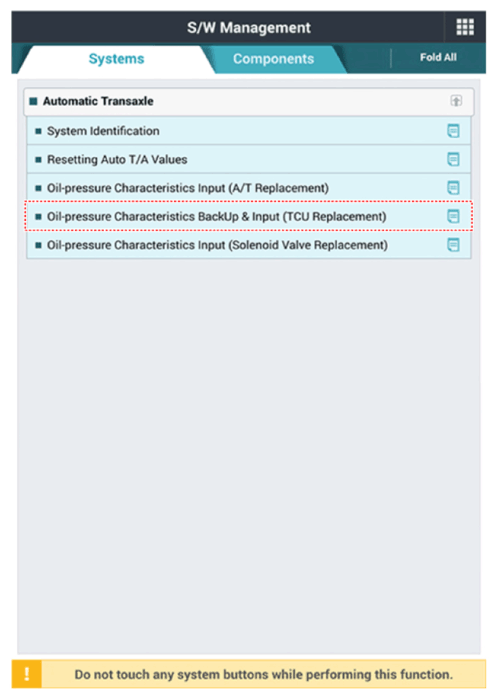

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G12803744Courtesy of KIA MOTORS AMERICA, INC.

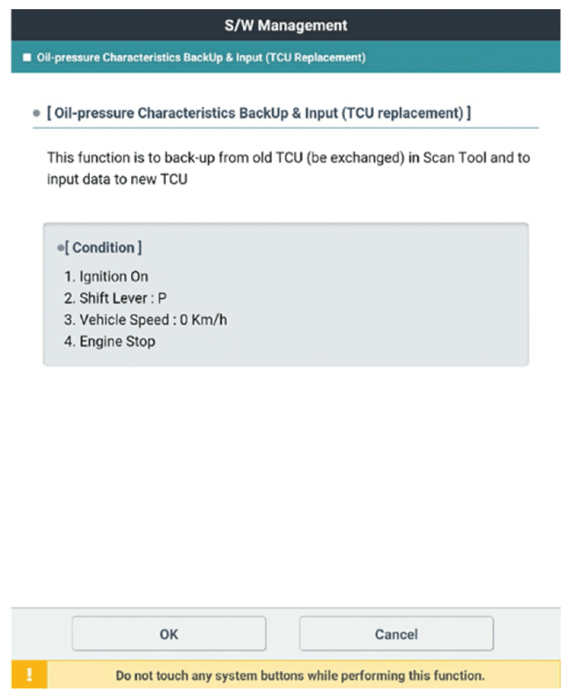

    2. Check the condition and then click the "OK".
      G12803745Courtesy of KIA MOTORS AMERICA, INC.

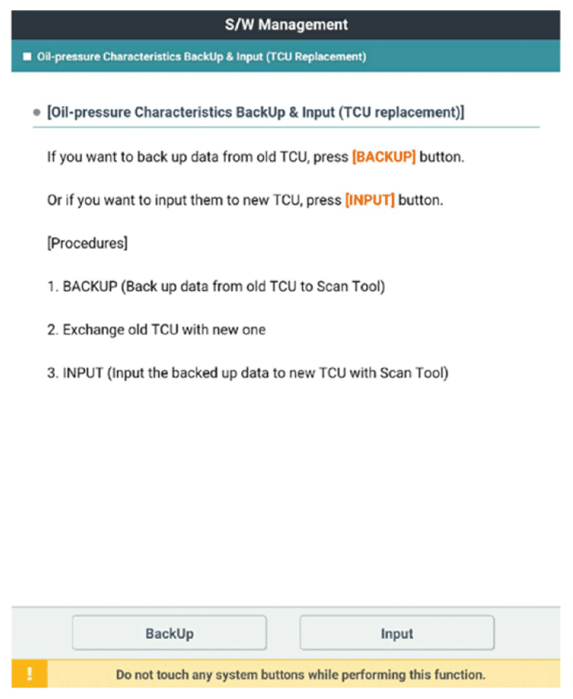

    3. Click the "Input".
      G12803746Courtesy of KIA MOTORS AMERICA, INC.

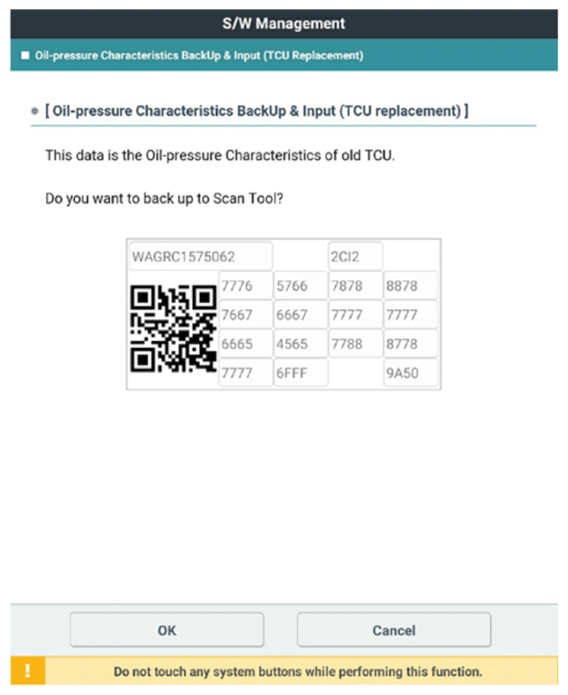

    4. Click the "OK".
      G12803747Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to " REPAIR PROCEDURES  ")
