Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

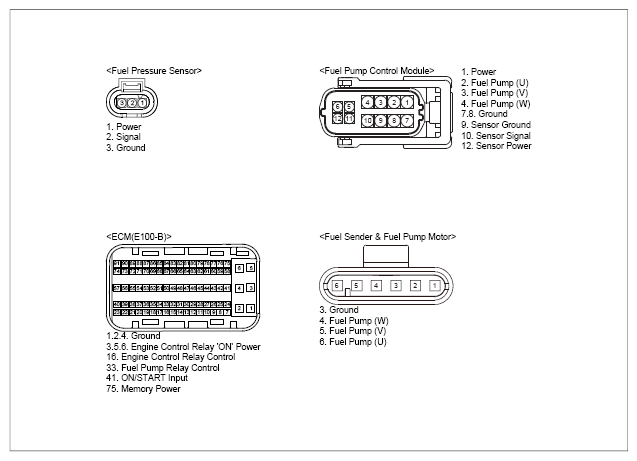

Connect the electrical connector (s) from the concerned component. Engine "ON".	Fuel Pump Control Module connector	1 (Power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the all electrical connector(s) from the concerned component.	Fuel Pump Control Module connector	7, 8 (Ground)	Chassis ground	-	Below Ω

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
