Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Backup & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Figures 1 to 9 below

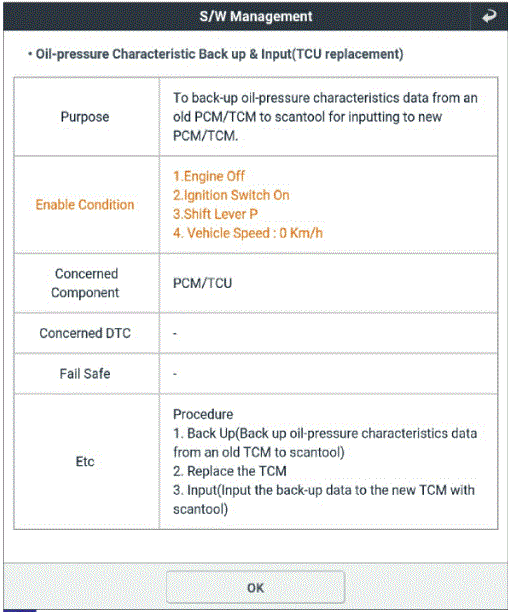

G00599169Courtesy of KIA MOTORS AMERICA, INC.

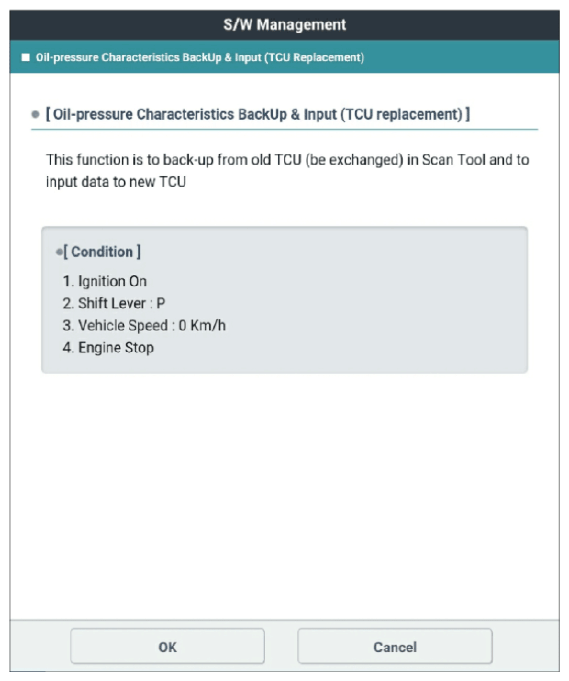

G13410770Courtesy of KIA MOTORS AMERICA, INC.

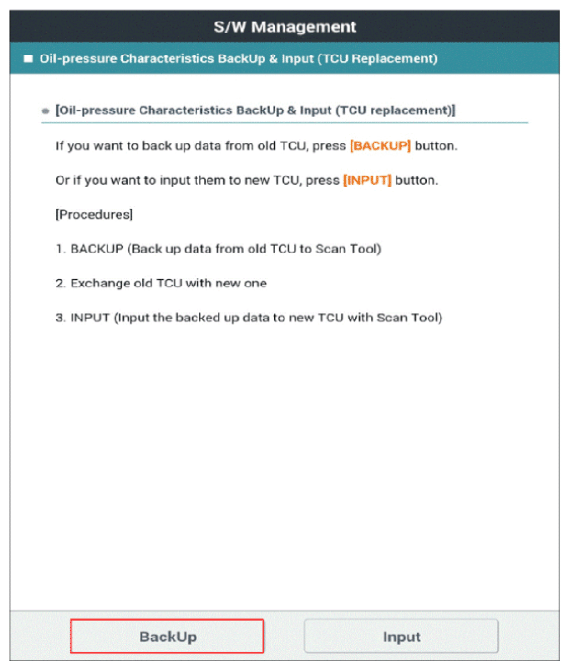

G13410771Courtesy of KIA MOTORS AMERICA, INC.

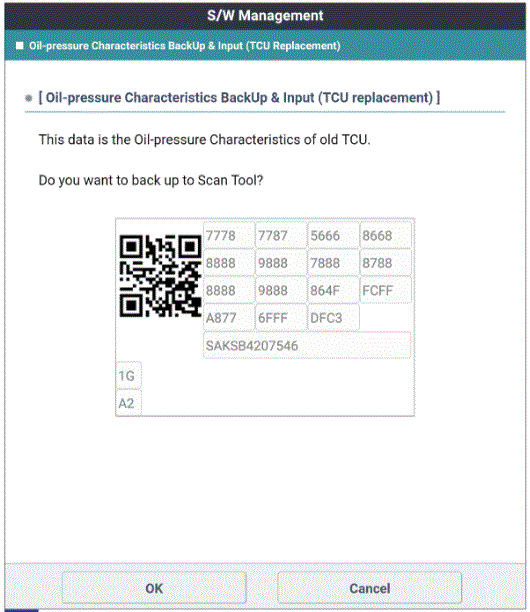

G00599170Courtesy of KIA MOTORS AMERICA, INC.

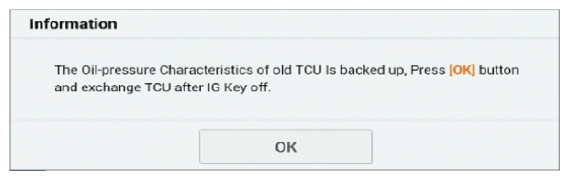

G13410772Courtesy of KIA MOTORS AMERICA, INC.

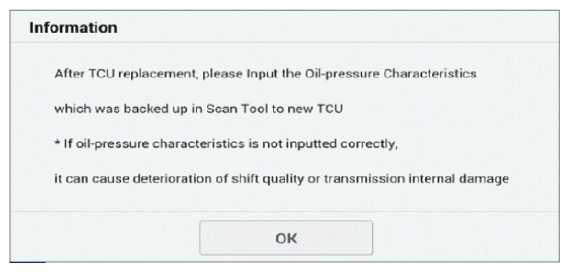

G13410773Courtesy of KIA MOTORS AMERICA, INC.

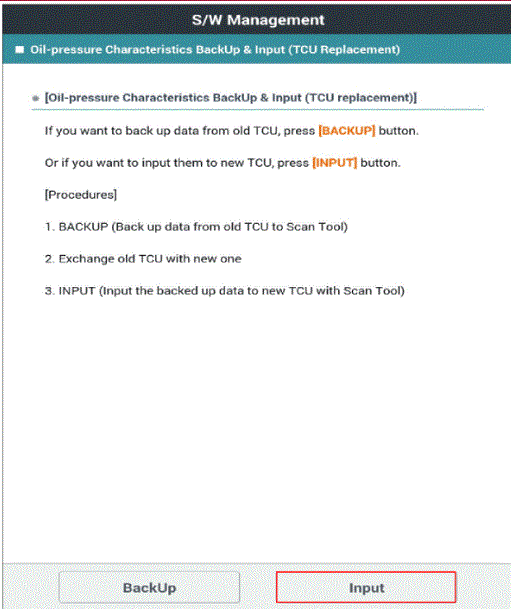

G00599171Courtesy of KIA MOTORS AMERICA, INC.

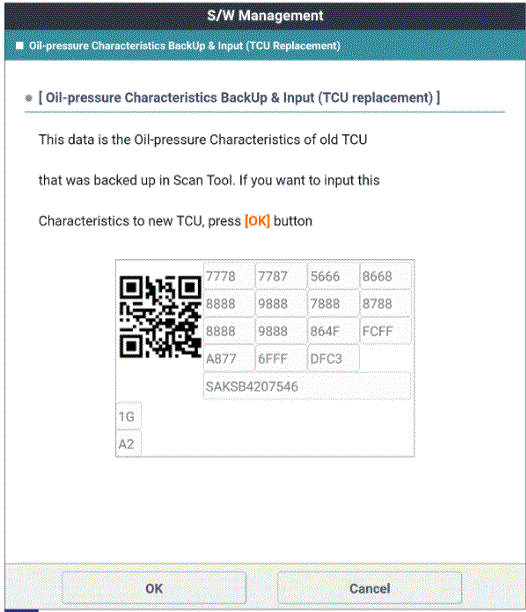

G00599172Courtesy of KIA MOTORS AMERICA, INC.

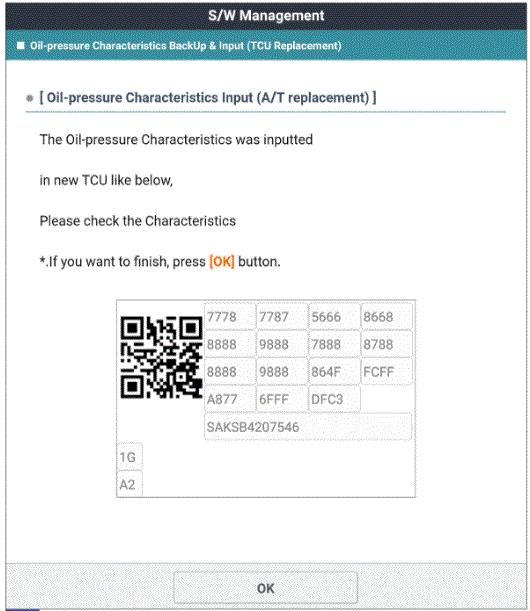

G00599173Courtesy of KIA MOTORS AMERICA, INC.
