Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
  3. Select "Clear Learning Value" in "Vehicle S/W management".
  4. After operation, perform the "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 3

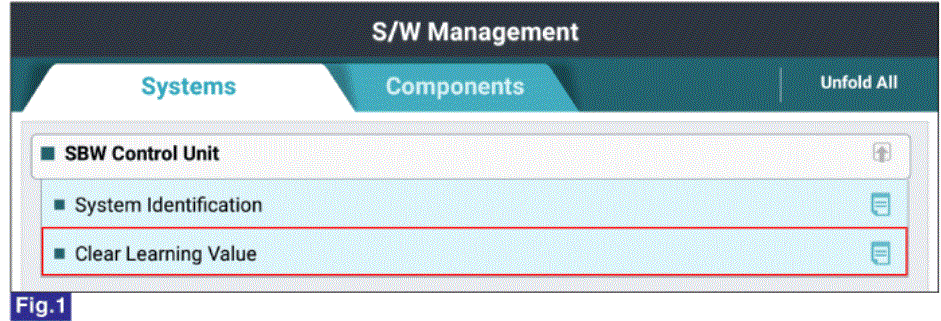

G00598977Courtesy of KIA MOTORS AMERICA, INC.

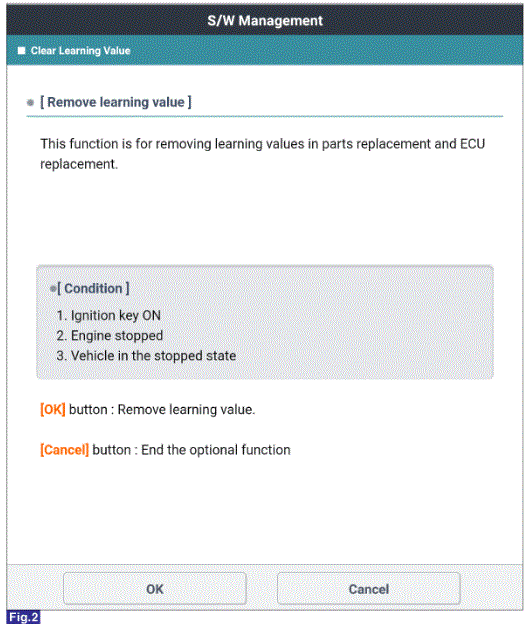

G00598978Courtesy of KIA MOTORS AMERICA, INC.

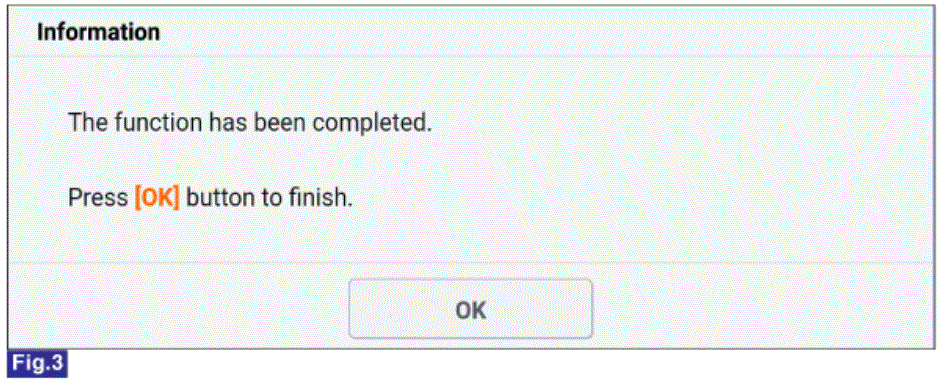

G00598979Courtesy of KIA MOTORS AMERICA, INC.
