Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ")

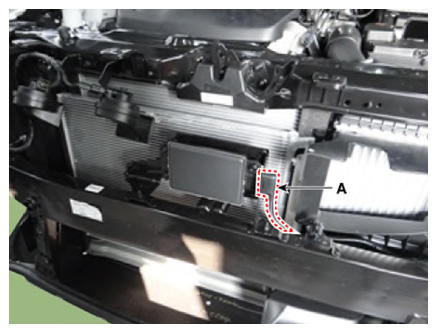

ASCC radar connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

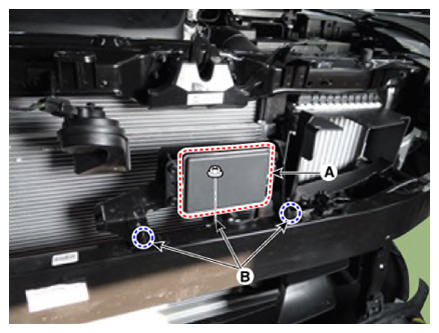

Remove the ASCC radar (A) after loosening the mounting nuts (B).

Courtesy of KIA MOTORS AMERICA, INC.
