Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

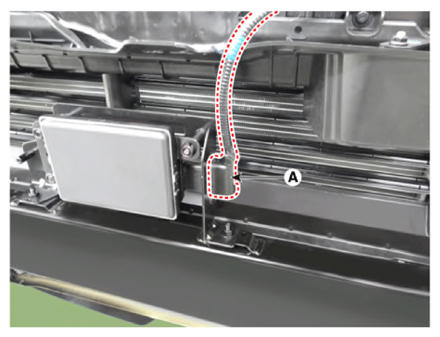

  3. Disconnect the connector (A) from the front radar unit.
    G13405860Courtesy of KIA MOTORS AMERICA, INC.

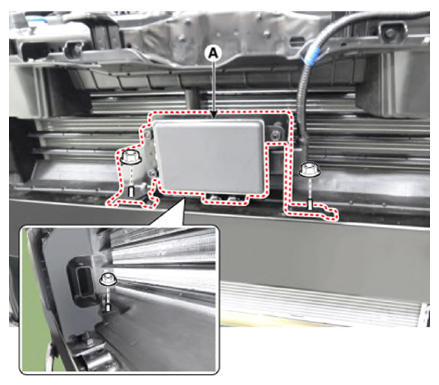

  4. Remove the front radar unit (A) after loosening the mounting nuts.
    G13405861Courtesy of KIA MOTORS AMERICA, INC.
