Home › Kia › 2020 › Cadenza Technology › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Advanced Smart Cruise Control System › Advanced Smart Cruise Control (ASCC) Switch › Repair Procedures › Removal › [RH]

Repair Procedures: Removal: [RH]

G13403244Courtesy of KIA MOTORS AMERICA, INC.

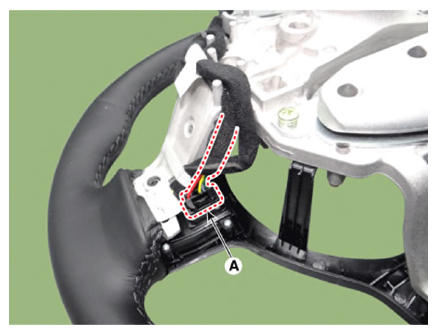

  1. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13403245Courtesy of KIA MOTORS AMERICA, INC.

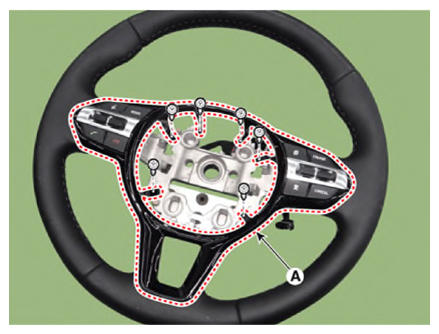

  2. Remove the steering wheel remote control (A) after loosening the mounting screws.
    G13403246Courtesy of KIA MOTORS AMERICA, INC.
