Advanced Smart Cruise Control (ASCC) Switch
›
Schematic Diagrams
›
Circuit Diagram

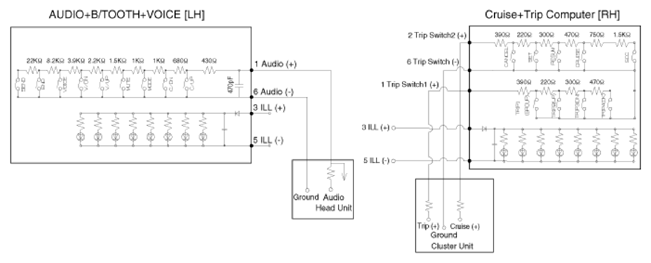

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

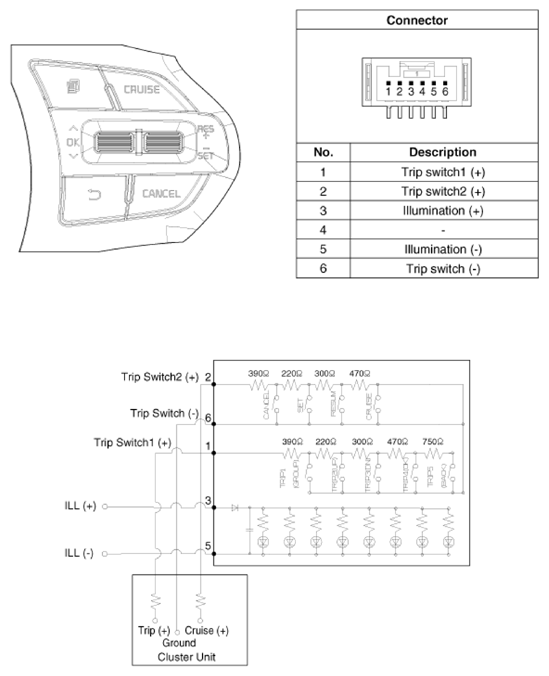

[Trip + ACC]
Courtesy of KIA MOTORS AMERICA, INC.

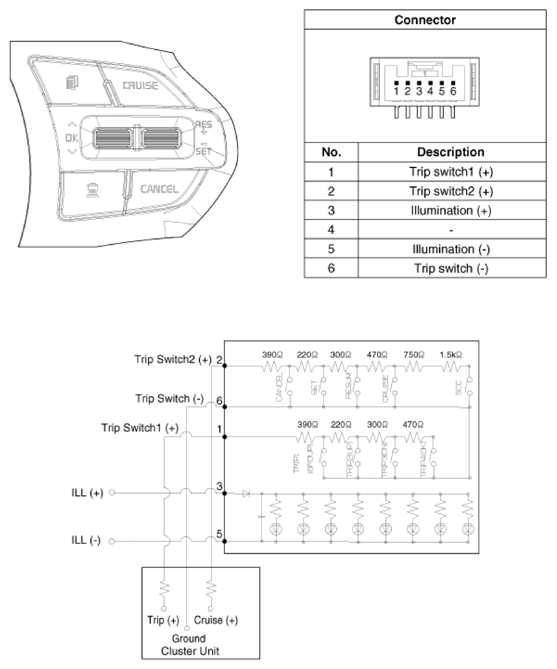

[Trip + ASCC]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
