Cadenza Technology
›
Repair and Diagnosis
›
Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Front View Camera System
›
Front View Camera Unit
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

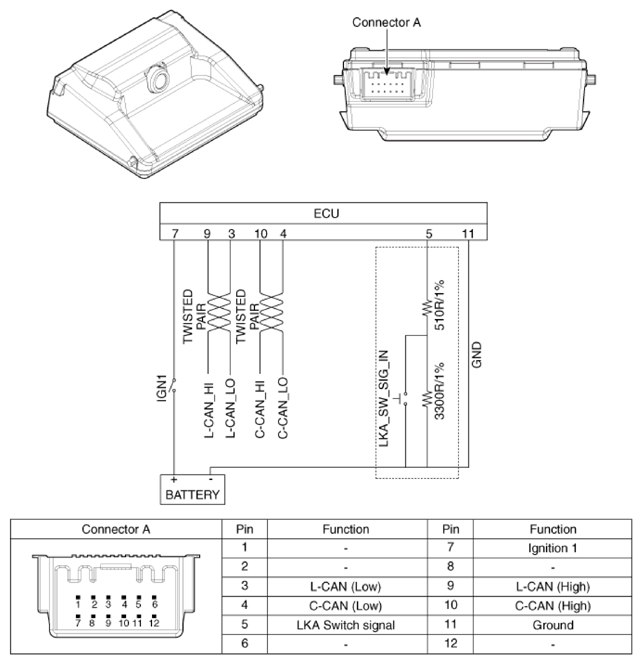

Fig 1: Front View Camera Unit Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
