Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

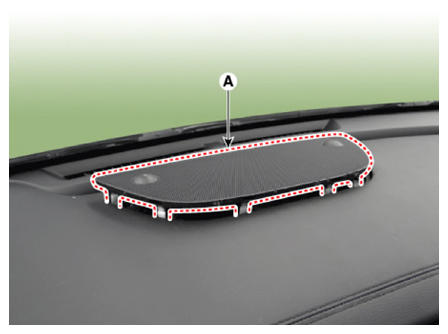

  2. Remove the center speaker grille (A).
    G13405082Courtesy of KIA MOTORS AMERICA, INC.

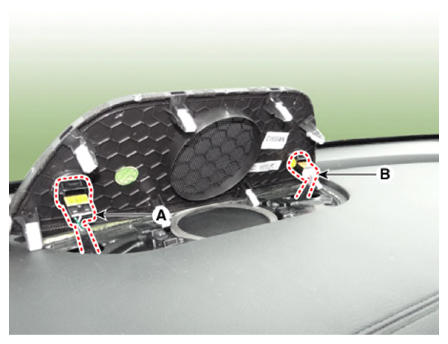

  3. Disconnect the security indicator connector (A) and photo sensor & auto light sensor connector (B).
    G13405083Courtesy of KIA MOTORS AMERICA, INC.

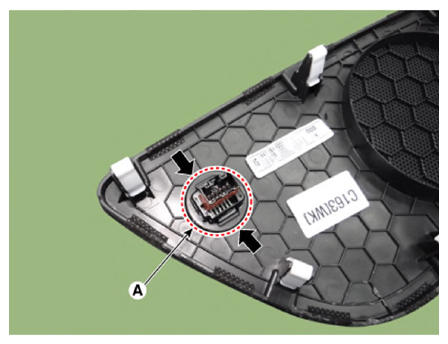

  4. Remove the photo sensor & auto light sensor (A) by pressing the locking pins.
    G13405084Courtesy of KIA MOTORS AMERICA, INC.
