Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

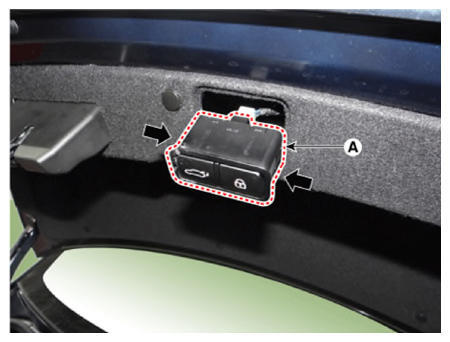

  3. Remove the trunk inner switch (A) by pushing two hooks.
    G13405484Courtesy of KIA MOTORS AMERICA, INC.

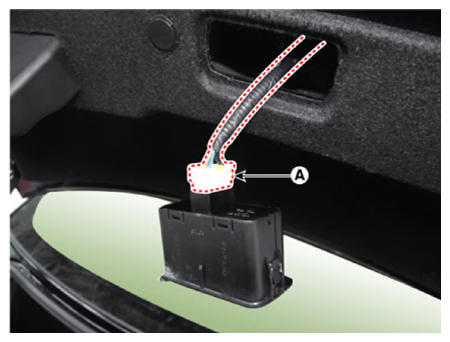

  4. Disconnect the trunk inner switch connector (A).
G13405485Courtesy of KIA MOTORS AMERICA, INC.
