Drive Unit

  1. Disconnect the negative battery terminal.
  2. Remove the left luggage side trim after opening the trunk.

    (Refer to Body - "TRUNK TRIM ")

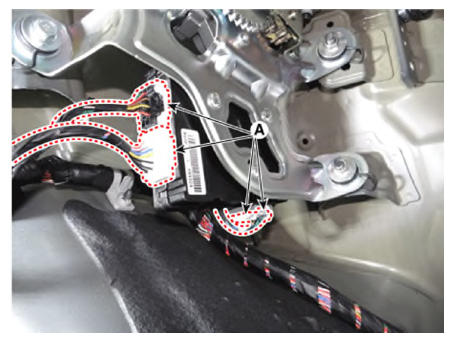

  3. Disconnect the drive unit connectors (A).
    G13405468Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the drive unit mounting clip (A).
    G13405469Courtesy of KIA MOTORS AMERICA, INC.

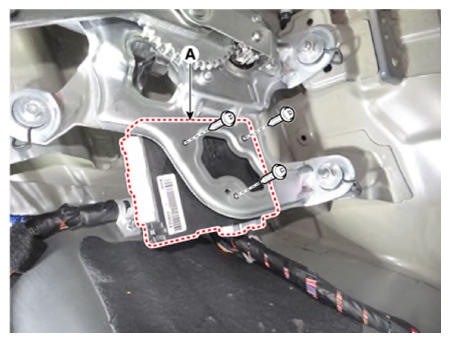

  5. Remove the drive unit (A) after loosening the mounting screws.
    G13405470Courtesy of KIA MOTORS AMERICA, INC.
