SMK, ECM/PCM Neutral Mode

Ignition "ON". & Engine "OFF".

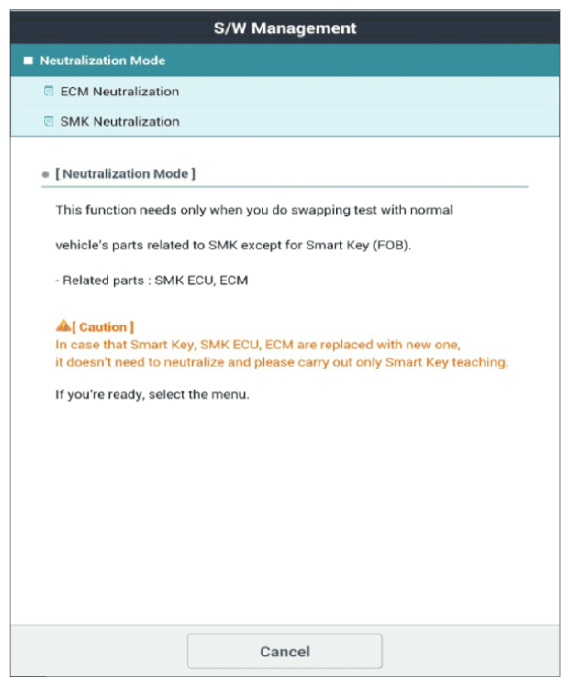

Perform "Neutralize Mode" in the "Vehicle S/W Management" with KDS.

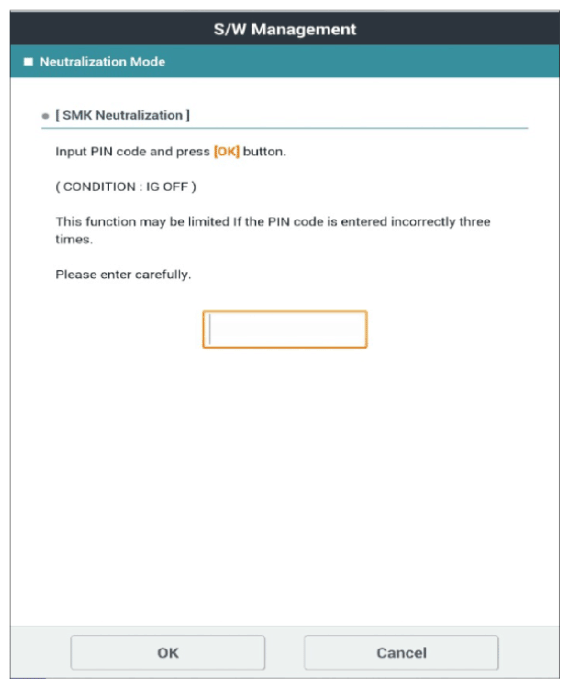

Neutralize smart key unit with KDS. (Fig 1, 2, 3)
Neutralize ECM/PCM with KDS. (Fig 1, 4, 5)
Perform key teaching procedure for smart key unit with KDS. (Fig.6, 7, 8, 9, 10, 11)
CAUTION: Pin code must be prepared to Neutralize Smart Key unit and to perform key teaching procedure.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
