Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tape around the tool and related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor console - "FLOOR CONSOLE ASSEMBLY ")

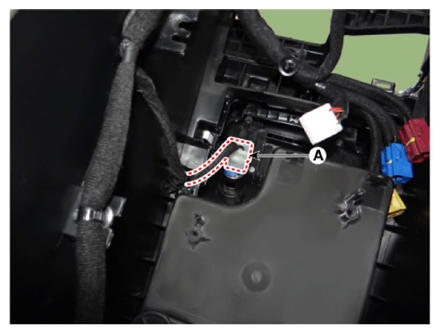

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

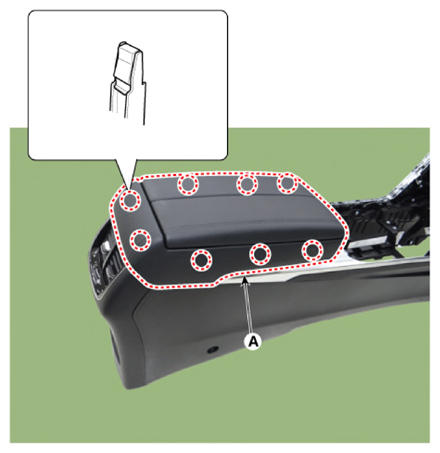

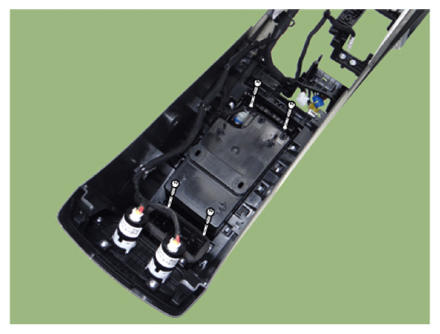

Loosen the mounting screws, remove the console armrest (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
