Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tape around the tool and related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

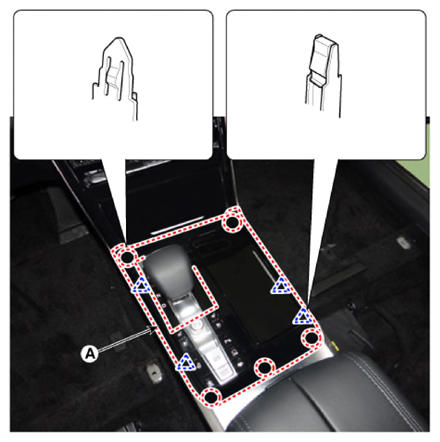

Remove the console upper cover (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the console tray connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

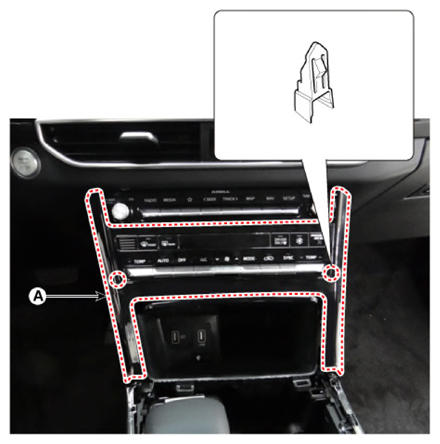

Remove the Center console garnish (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

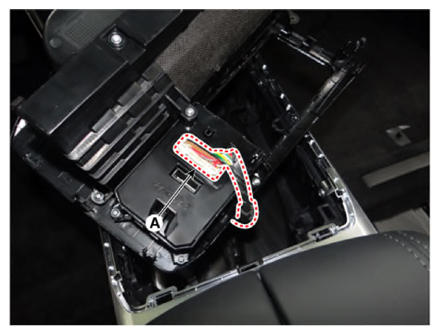

Disconnect the heater & A/C control unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

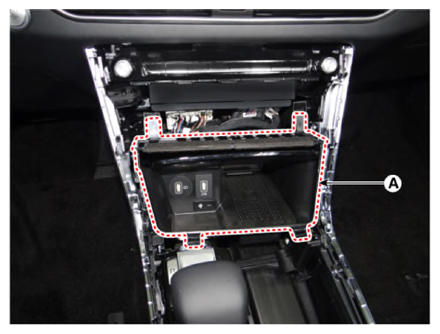

Remove the console tray (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

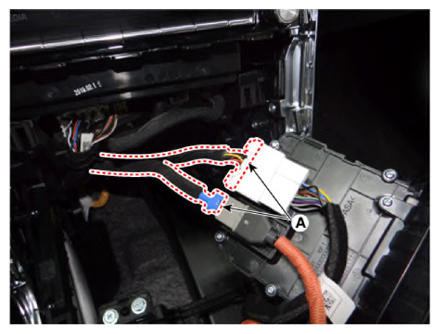

Disconnect the console tray connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

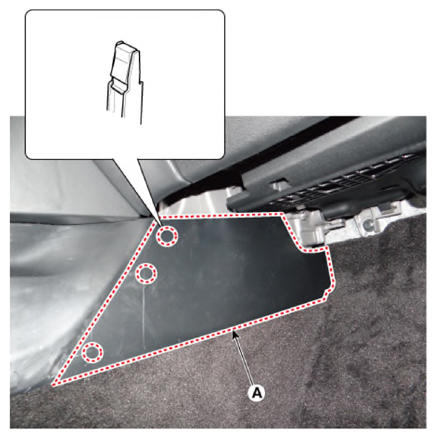

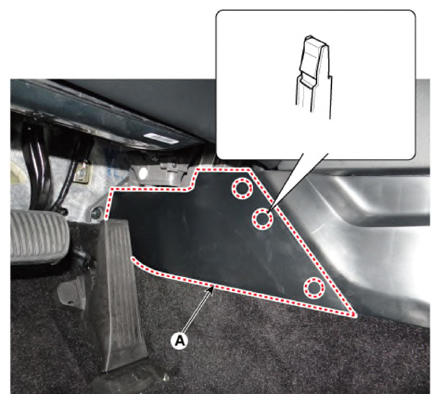

Remove the console side cover (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Remove the console storage box (A).

Courtesy of KIA MOTORS AMERICA, INC.

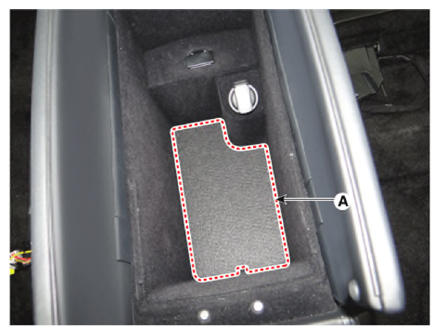

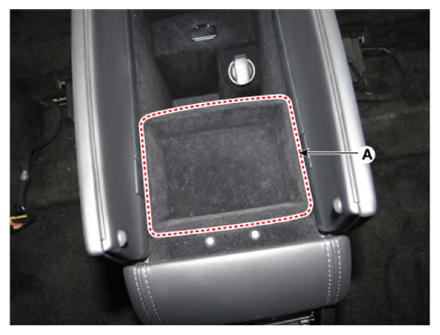

Remove the console tray mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

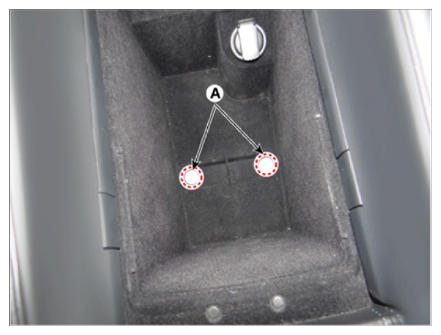

Loosen the console mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the SBW shifter lever.
(Refer to Automatic - "SHIFT LEVER ")

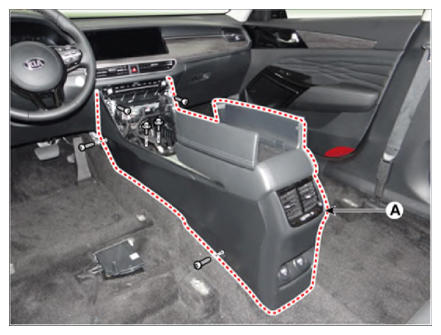

After loosening the mounting screws and bolts, remove the floor console assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

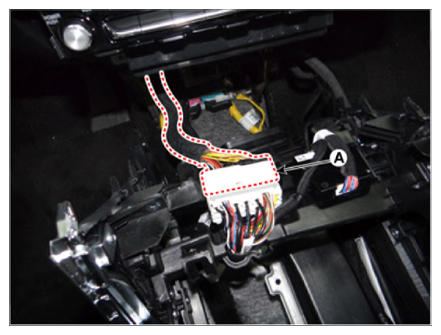

Disconnect the floor console main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
