Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the trunk lid weather strip.
(Refer to Trunk Lid - "TRUNK LID WEATHERSTRIP ")

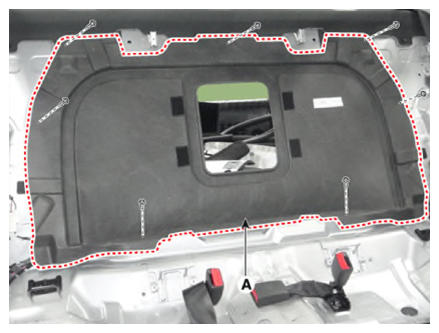

Remove the luggage partition trim (A) after loosening the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

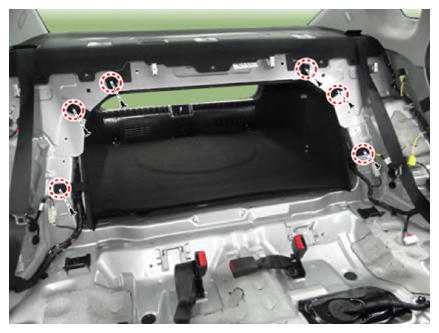

Remove the trunk trim mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

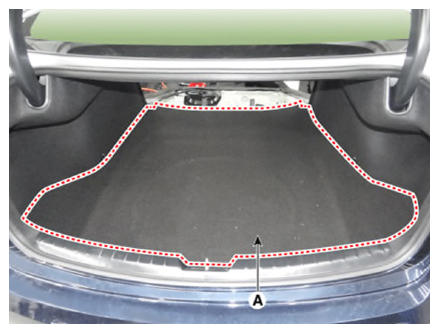

Remove the luggage covering mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

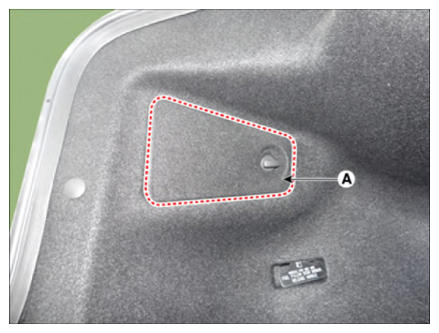

Remove the striker cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

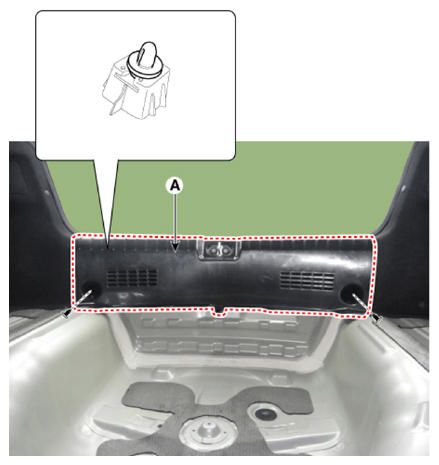

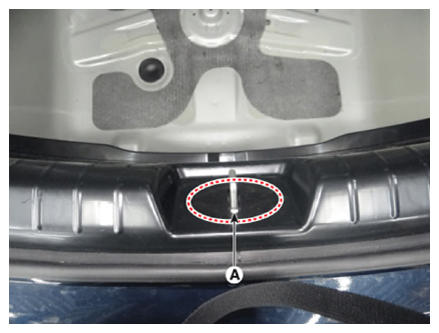

Remove the rear transverse trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

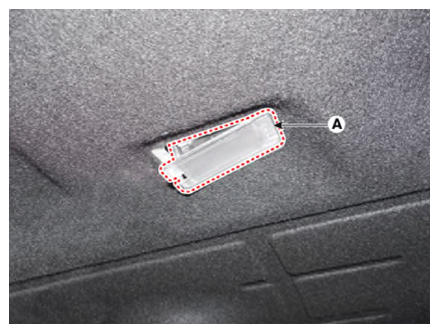

Separate the trunk lamp (A).

Courtesy of KIA MOTORS AMERICA, INC.

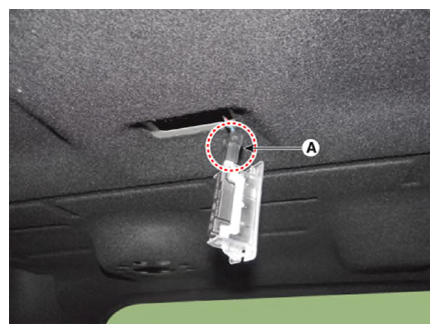

Disconnect the connector (A) and then remove the trunk lamp.

Courtesy of KIA MOTORS AMERICA, INC.

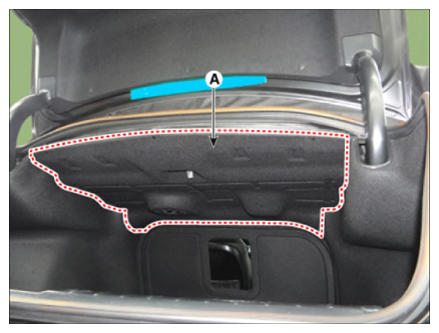

Remove the partition upper trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the both sides rear combination lamp cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

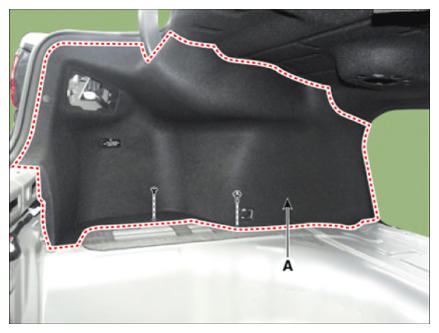

Remove the both sides luggage side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damage clips.
