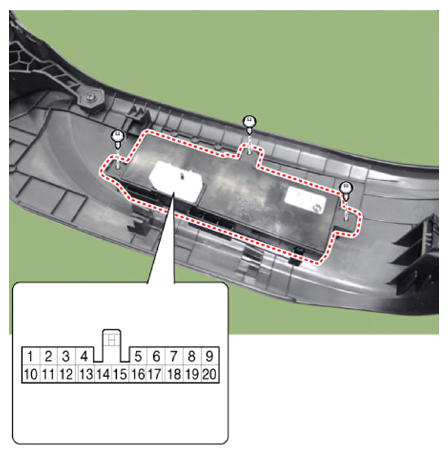

Seat Control Switch

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Courtesy of KIA MOTORS AMERICA, INC.

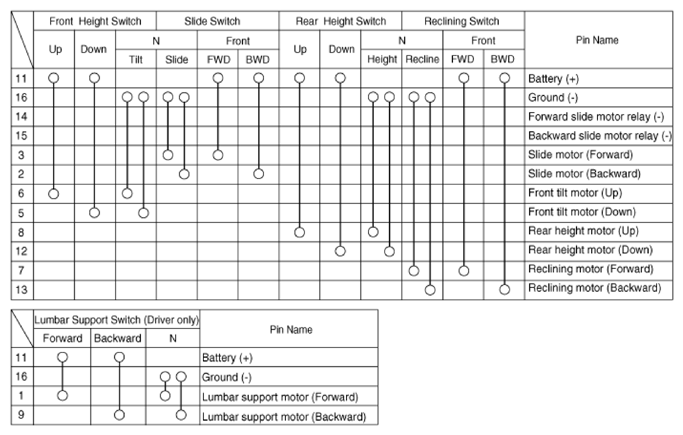

(Lumbar Support 2Way)

Courtesy of KIA MOTORS AMERICA, INC.

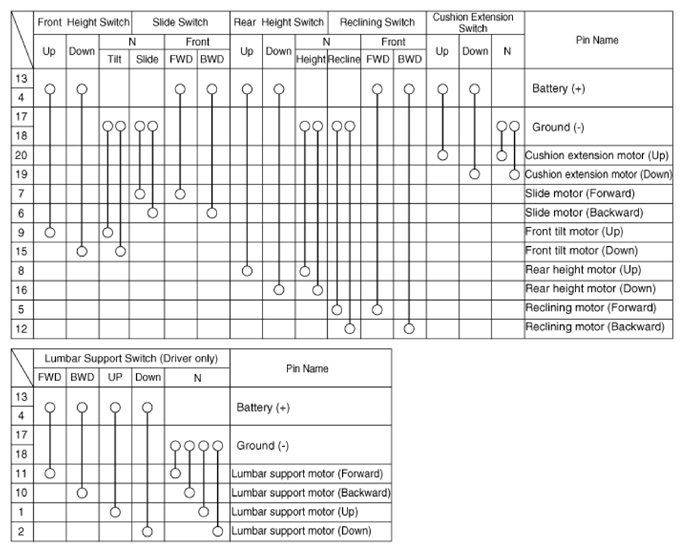

(Lumbar Support 4Way + Cushion Extension)

Courtesy of KIA MOTORS AMERICA, INC.
