TJ Joint
›
Components And Components Location
›
Components
Components And Components Location: Components

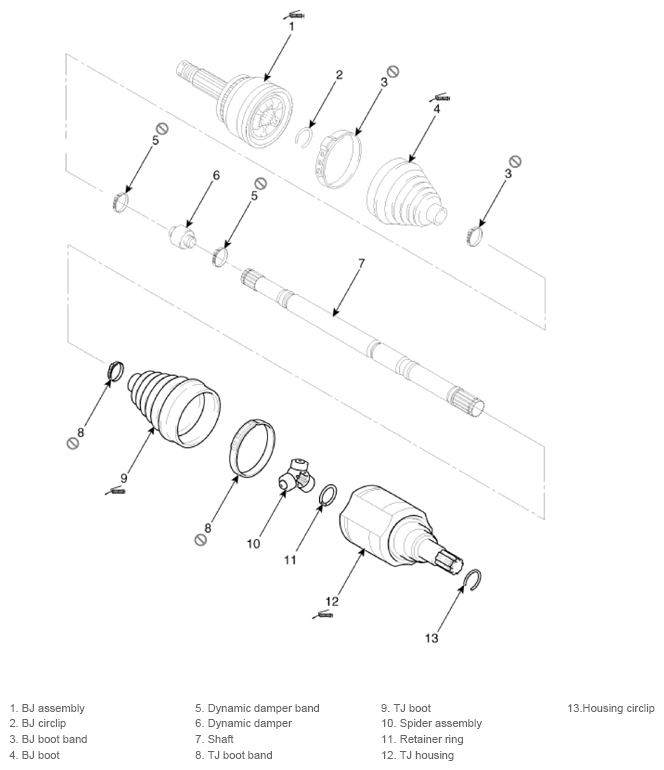

[LH]
Courtesy of KIA MOTORS AMERICA, INC.

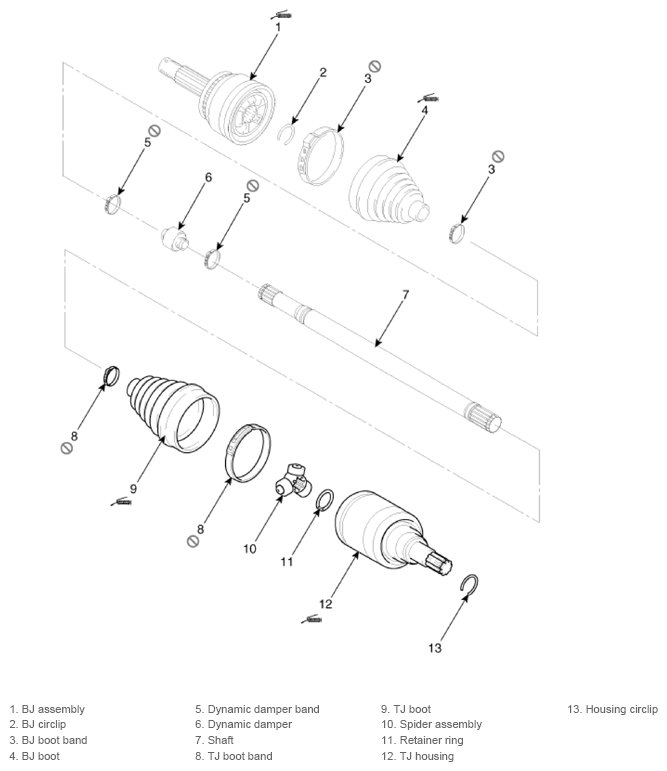

[RH]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
