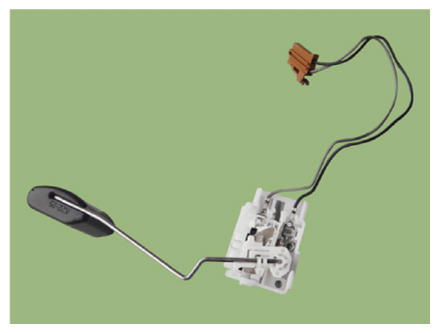

Repair Procedures: Removal

G13403540Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the fuel pump.

    (Refer to "Removal ").

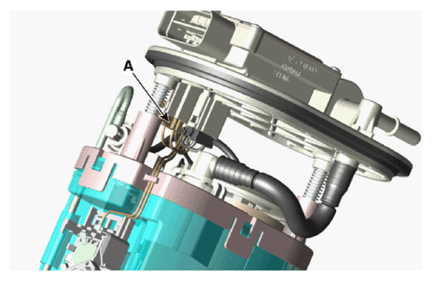

  2. Disconnect the fuel sender connector (A).
    G13403541Courtesy of KIA MOTORS AMERICA, INC.

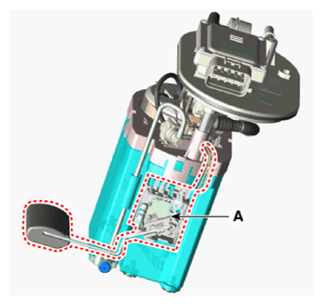

  3. Remove the fuel sender (A) after releasing the fix hook.
    G13403542Courtesy of KIA MOTORS AMERICA, INC.
