Components And Components Location: Components

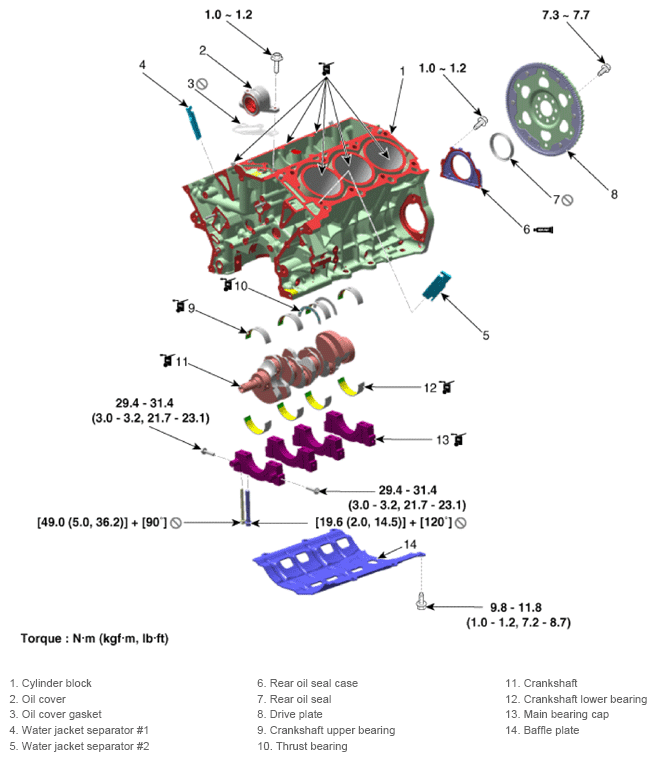

Fig 1: Cylinder Block Components Location With Torque Specification

Courtesy of KIA MOTORS AMERICA, INC.

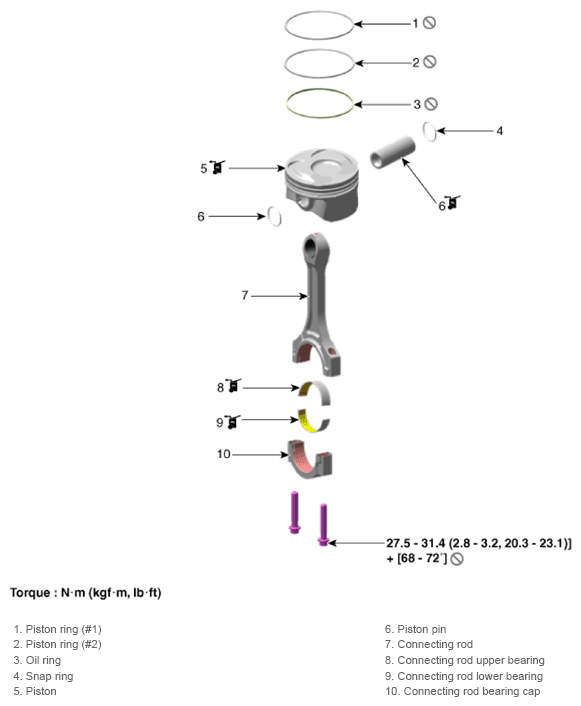

Fig 2: Connecting Rod Components Location With Torque Specification

Courtesy of KIA MOTORS AMERICA, INC.
