Components And Components Location: Components

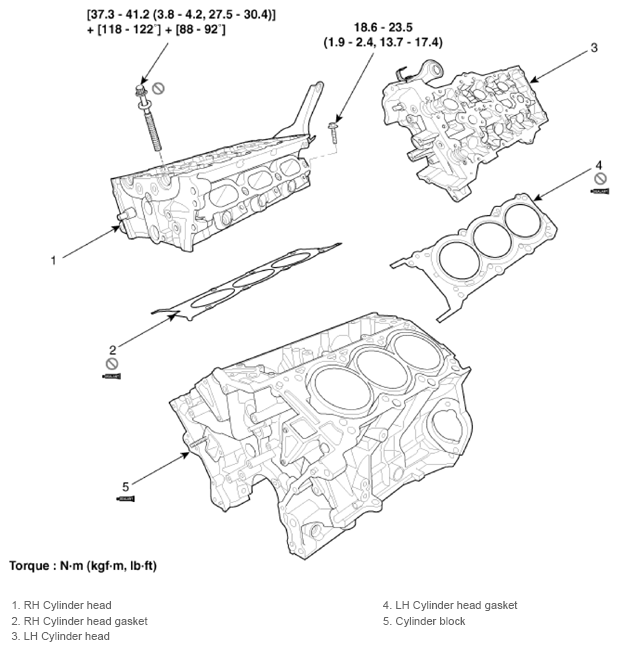

Fig 1: Cylinder Head Components Location With Torque Specification
G13402897Courtesy of KIA MOTORS AMERICA, INC.
