Engine Control System
›
Fuel Pressure Control Valve (FPCV)
›
Troubleshooting
›
Signal Waveform
Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

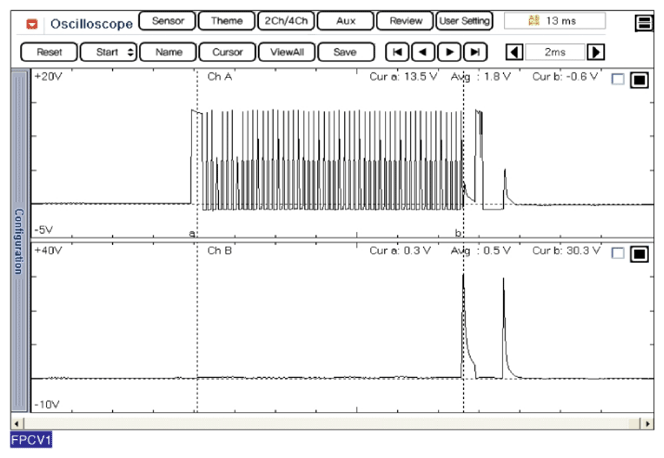

Idle rail pressure regulator waveform
Courtesy of KIA MOTORS AMERICA, INC.
