Notes
Components Location: Notes

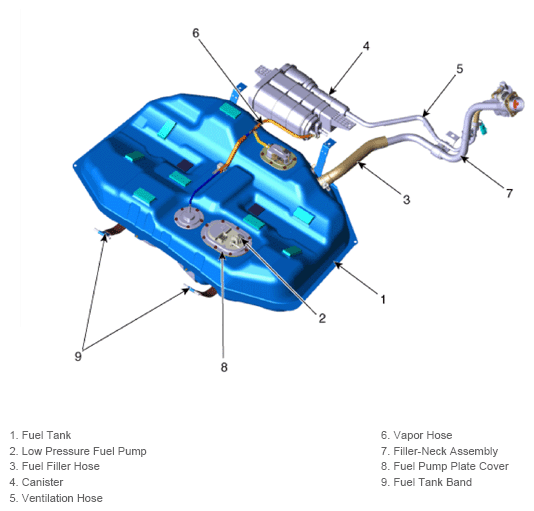

Fuel Tank & Filler-Neck Assembly
Courtesy of KIA MOTORS AMERICA, INC.

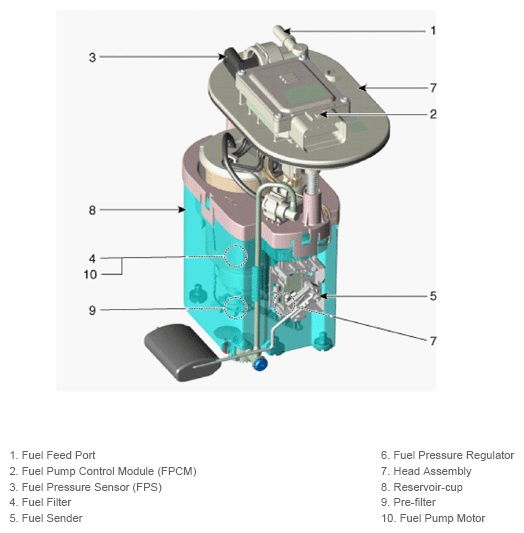

Low Pressure Fuel Pump
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
