Repair Procedures: Removal

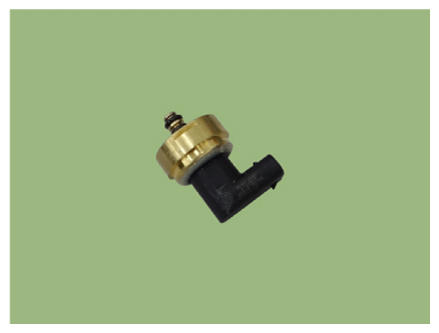

G13403564Courtesy of KIA MOTORS AMERICA, INC.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

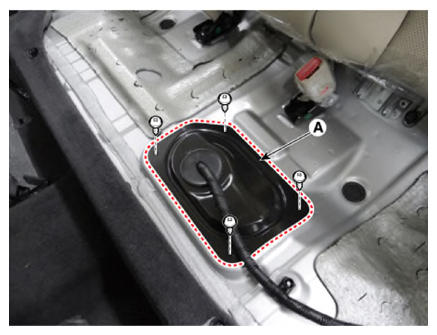

  4. Remove the fuel pump service cover (A).
    G13403565Courtesy of KIA MOTORS AMERICA, INC.

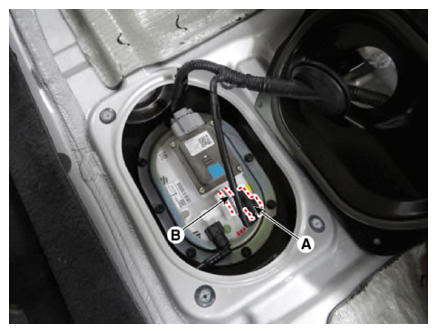

  5. Disconnect the fuel pressure sensor connector (A).
  6. Remove the fuel pressure sensor fixing pin (B).
  7. Remove the fuel pressure sensor from the fuel pump.
    G13403566Courtesy of KIA MOTORS AMERICA, INC.
