Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Removal ").

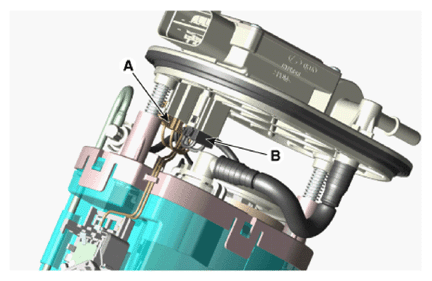

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13403533Courtesy of KIA MOTORS AMERICA, INC.

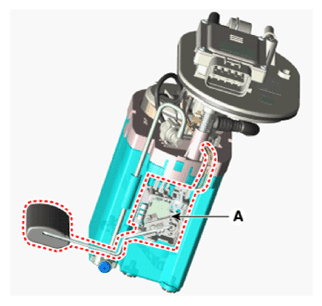

  3. Lift the fixing hook by using a common driver, and then remove the fuel sender (A).
    G13403534Courtesy of KIA MOTORS AMERICA, INC.

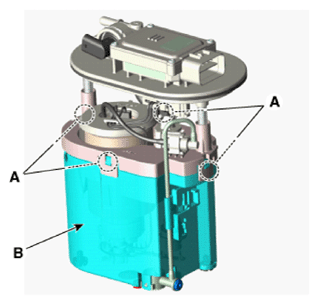

  4. Remove the reservoir cup (B) after releasing the fixing hooks (A).
    G13403535Courtesy of KIA MOTORS AMERICA, INC.

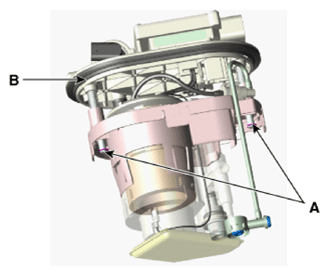

  5. Remove the head assembly (B) after releasing the fixing hooks (A).
    G13403536Courtesy of KIA MOTORS AMERICA, INC.

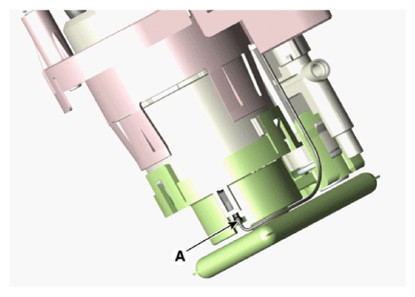

  6. Disconnect the ground cable (A).
    G13403537Courtesy of KIA MOTORS AMERICA, INC.

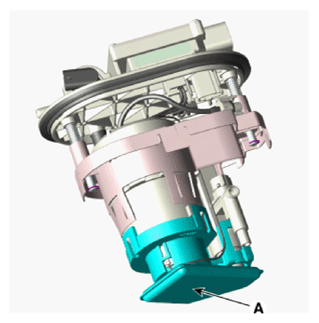

  7. Remove the free-filter (A) after releasing the fixing hooks.
    G13403538Courtesy of KIA MOTORS AMERICA, INC.

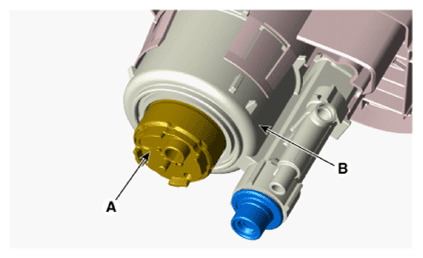

  8. Remove the fuel pump motor (A) from the fuel filter (B).
    G13403539Courtesy of KIA MOTORS AMERICA, INC.
